ISL6256AEVAL1Z footprint, schematic symbol and 3D model by Renesas Electronics

ISL6256AEVAL1Z - Renesas Electronics

Description: The ISL6256AEVAL1Z (QSOP) evaluation kit includes all the circuitry needed to demonstrate the capabilities of the ISL6256A lithium-ion battery charger.The ISL6256A is a highly integrated battery charger controller for Li-ion and Li-ion polymer batteries. High efficiency is achieved by a synchronous buck topology and the use of a MOSFET, instead of a diode, for selecting power from the adapter or battery. The low-side MOSFET emulates a diode at light loads to improve the light load efficiency and prevent sys

Download ISL6256AEVAL1Z Model

Schematic
symbols

PCB
footprints

3D
models

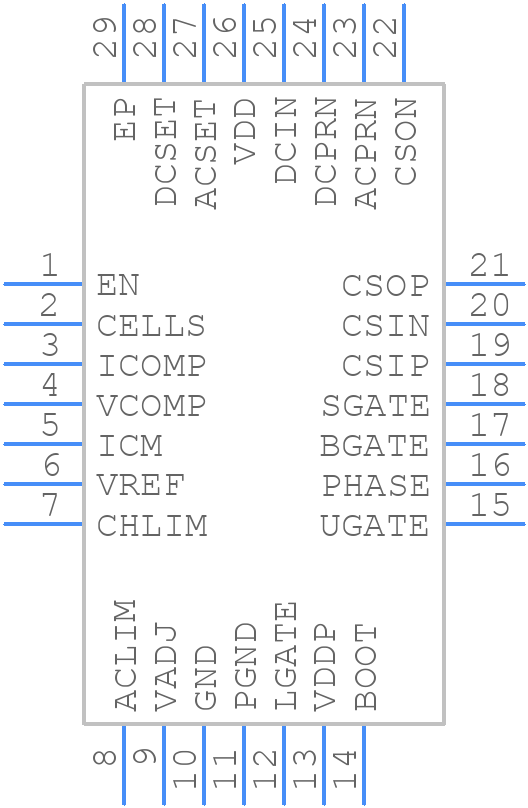

Symbol

click to zoom

PCB Footprints

ISL6256AEVAL1Z - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L28 .5x5B4

click to zoom

3D Models

ISL6256AEVAL1Z - Renesas Electronics - 3D model - Quad Flat No-Lead - L28 .5x5B4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISL6256AEVAL1Z
Part Number ISL6256AEVAL1Z
Manufacturer Renesas Electronics
Pin Count 29
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - L28 .5x5B4
Released Date Apr 3, 2021
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ISL6256AEVAL1Z Details

Manufacturer Part Number:
ISL6256AEVAL1Z
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ISL6256AEVAL1Z Overview

Use the download button to access the ISL6256AEVAL1Z schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ISL62, or try a keyword search, such as Power Management Circuits
