Description:The ISL6262A is a two-phase buck converter regulator implementing Intel® IMVP-6+ protocol with embedded gate drivers. The two-phase buck converter uses two interleaved channels to effectively double the output voltage ripple frequency, and thereby reduce output voltage ripple amplitude with fewer components; lower component cost; reduced power dissipation; and smaller real estate area. The heart of the ISL6262A is the patented R3 Technology™, Intersil's Robust Ripple Regulator modulator. Compared with the t
The recommended PCB layout for optimal performance involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To select the right inductor, consider the maximum current rating, inductance value, and DC resistance. The inductor should be able to handle the maximum output current, and the inductance value should be within the recommended range specified in the datasheet. Additionally, consider the physical size and cost of the inductor.
The maximum junction temperature that the ISL6262AIRZ-T can handle is 125°C. However, it's recommended to keep the junction temperature below 100°C for optimal performance and reliability.
To troubleshoot issues with the IC, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the input and output capacitors are properly selected and placed. Check the inductor selection and ensure that it's within the recommended range. Finally, use an oscilloscope to measure the output voltage and current waveforms to identify any signs of oscillation or instability.
Yes, the ISL6262AIRZ-T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's recommended to consult with Renesas Electronics Corporation for specific requirements and guidelines for these applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6262AIRZ-T Overview

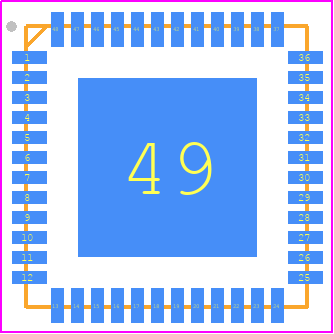

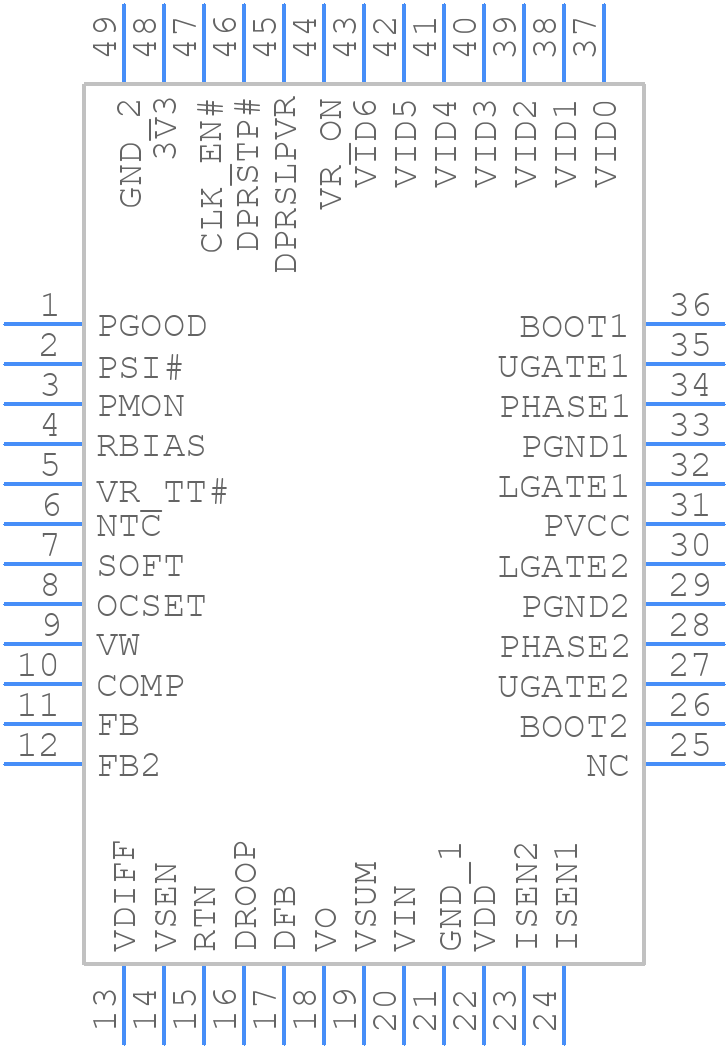

Use the download button to access the ISL6262AIRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
