Description:The ISL6263A IC is a Single-Phase Synchronous-Buck PWM voltage regulator featuring Intersil's Robust Ripple Regulator (R3) Technology™. The ISL6263A is an implementation of the Intel® Mobile Voltage Positioning (IMVP) protocol for GPU Render Engine core power. Integrated power monitor, droop amplifier, MOSFET drivers, and bootstrap diode result in smaller implementation area and lower component cost. Intersil's R3 Technology™ combines the best features of both fixed-frequency PWM and hysteretic PWM, deliver
The recommended layout and placement for the ISL6263ACRZ can be found in the application note AN1443 from Renesas Electronics Corporation. It provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
The compensation network for the ISL6263ACRZ can be optimized by following the guidelines in the datasheet and application notes. The key is to ensure that the compensation network is properly tuned to the specific application's requirements, taking into account the output capacitor's ESR, output voltage, and load current.
The maximum junction temperature for the ISL6263ACRZ is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal performance and reliability. The thermal management guidelines in the application notes can help achieve this.
Yes, the ISL6263ACRZ is rated for operation up to 105°C ambient temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the thermal management guidelines and ensure proper cooling to maintain optimal performance.
Troubleshooting issues with the ISL6263ACRZ can be done by following a systematic approach. Start by checking the power supply, output voltage, and load current. Then, verify the compensation network and ensure that it's properly tuned. Finally, check for any signs of overheating or electrical overstress.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6263ACRZ Overview

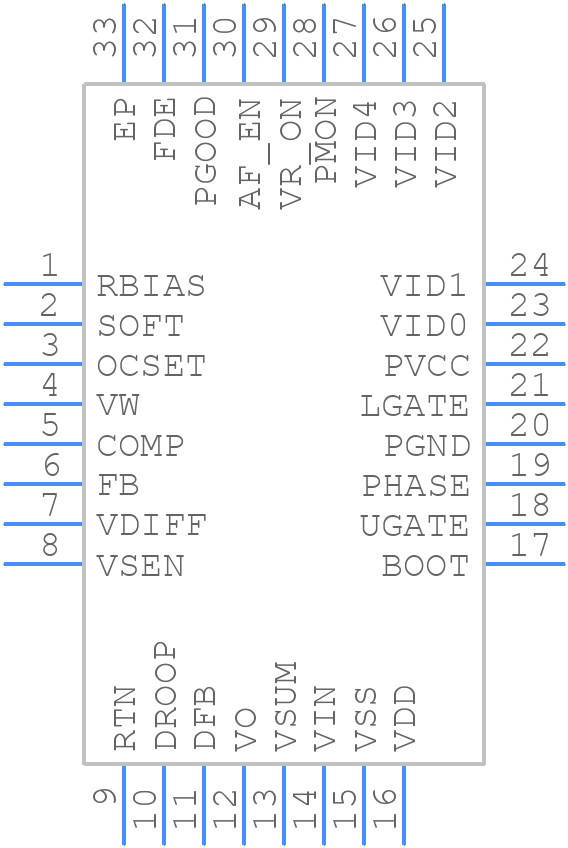

Use the download button to access the ISL6263ACRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
