Description:The ISL6264 is a two-phase buck controller with embedded gate drivers. The two-phase buck controller uses two interleaved channels to effectively double the output voltage ripple frequency and thereby reduce output voltage ripple amplitude with fewer components, lower component cost, reduced power dissipation, and smaller real estate area. ISL6264 can also be configured as single-phase controller for low power CPU applications. The heart of the ISL6264 is the patented R3 Technology™, Intersil's Robust Rippl
Renesas provides a recommended PCB layout in the ISL6264CRZ evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
Renesas provides a compensation calculator tool on their website, which helps designers optimize the compensation network for the voltage regulator based on their specific application requirements. Additionally, the datasheet provides general guidelines for compensation network design.
While the datasheet doesn't specify a maximum allowed input voltage ripple, Renesas recommends keeping the input voltage ripple below 1% of the nominal input voltage to ensure stable operation and prevent oscillations.
The ISL6264CRZ is rated for operation up to 105°C, but it's essential to consider the thermal derating of the device and the PCB when operating in high-temperature environments. Renesas provides thermal derating curves in the datasheet to help designers determine the maximum allowed power dissipation at elevated temperatures.
Renesas provides guidelines for EMC design in the ISL6264CRZ datasheet, including recommendations for PCB layout, component selection, and filtering. Additionally, designers should follow general EMC design principles, such as minimizing loop areas and using shielding and filtering components as needed.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6264CRZ Overview

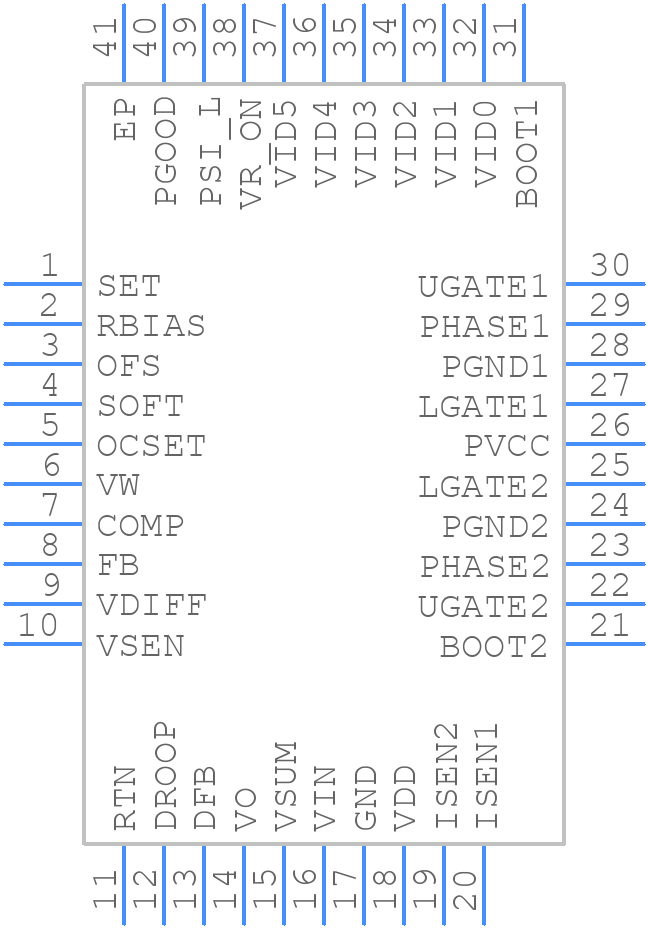

Use the download button to access the ISL6264CRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
