Description:The ISL6265A is a multi-output controller with embedded gate drivers. A single-phase controller powers the Northbridge (VDDNB) portion of the CPU. The two remaining controller channels can be configured for two-phase or individual single-phase outputs. For uniplane CPU applications, the ISL6265A is configured as a two-phase buck converter. This allows the controller to interleave channels to effectively double the output voltage ripple frequency, and thereby reduce output voltage ripple amplitude with fewer
The recommended PCB layout for optimal performance involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To select the right inductor, consider the maximum current rating, inductance value, and DC resistance. The inductor should be able to handle the maximum output current, and the inductance value should be within the recommended range specified in the datasheet. Additionally, consider the physical size and cost of the inductor.
The maximum junction temperature that the ISL6265AHRTZ-T can handle is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal performance and reliability.
To troubleshoot issues with the IC, start by checking the PCB layout and ensuring that it follows the recommended layout guidelines. Next, verify that the input and output capacitors are properly selected and placed. Check the inductor selection and ensure that it's within the recommended range. Finally, use an oscilloscope to measure the output voltage and current waveforms to identify any signs of oscillation or instability.
Yes, the ISL6265AHRTZ-T is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard for automotive applications, and it's also suitable for high-reliability applications such as industrial, medical, and aerospace.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6265AHRTZ-T Overview

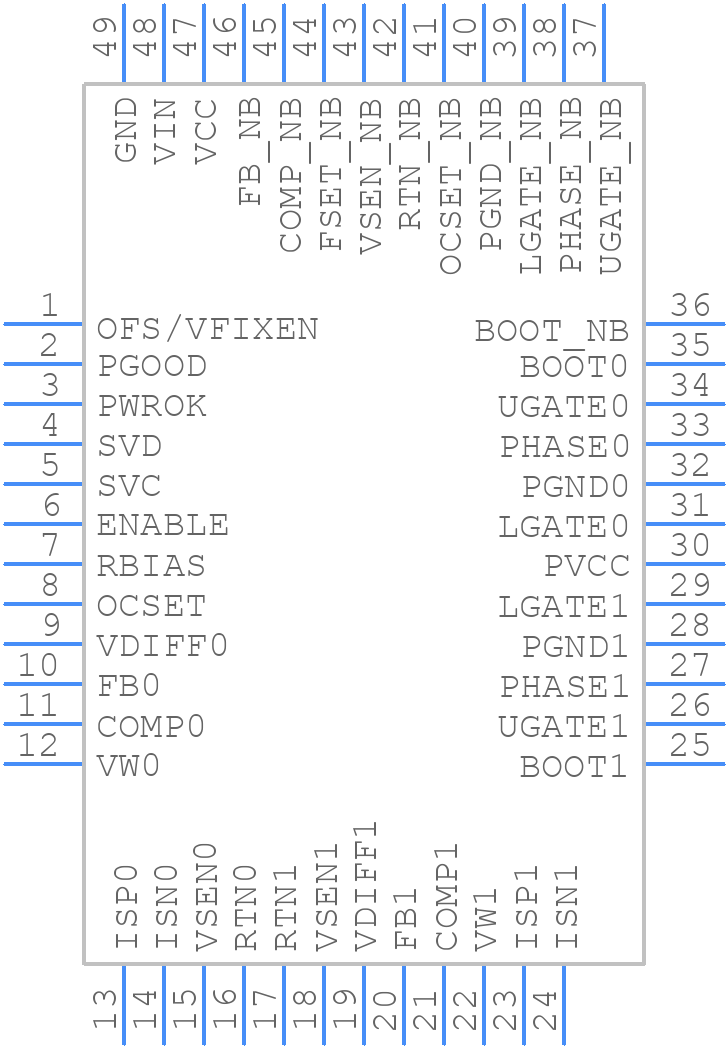

Use the download button to access the ISL6265AHRTZ-T schematic symbol, PCB footprint, and 3D model.
