Description:The ISL62881 is a single-phase PWM buck regulator for microprocessor or graphics processor core power supply. It uses an integrated gate driver to provide a complete solution. The PWM modulator of ISL62881 is based on Renesas' Robust Ripple Regulator (R3) technology™. Compared with traditional modulators, the R3™ modulator commands variable switching frequency during load transients, achieving faster transient response. With the same modulator, the switching frequency is reduced at light load, increasing th
Renesas provides a recommended PCB layout guide in their application note AN1866, which includes guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize noise.
The compensation network can be optimized using Renesas' PowerNavigator software, which provides a graphical interface to design and simulate the compensation network. Additionally, the datasheet provides guidelines for selecting the compensation components based on the output voltage and load characteristics.
The maximum junction temperature (Tj) for the ISL62881HRTZ is 125°C. However, it's recommended to operate the device at a lower temperature to ensure reliability and minimize thermal stress.
Yes, the ISL62881HRTZ is designed for high-reliability applications and features built-in fault detection and protection mechanisms, such as overvoltage protection, undervoltage protection, and overcurrent protection, making it suitable for high-availability systems.
Renesas provides guidelines for EMC design in their application note AN1866, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with relevant EMC standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL62881HRTZ Overview

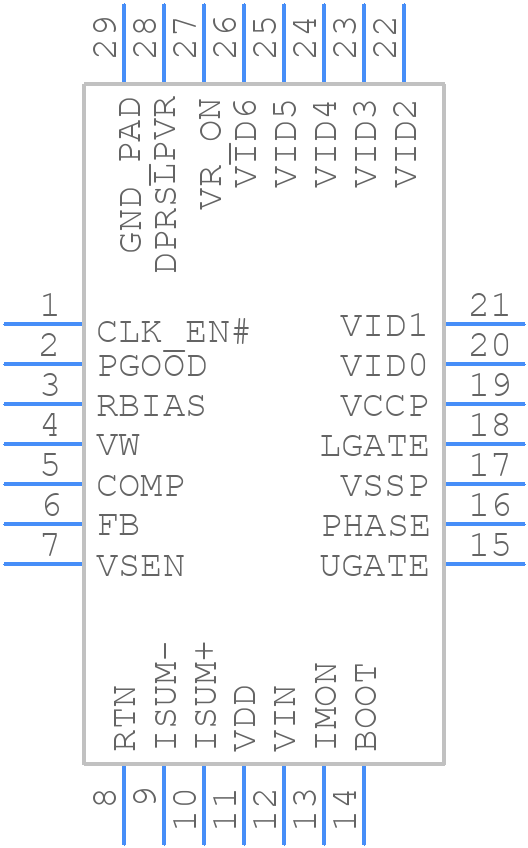

Use the download button to access the ISL62881HRTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
