Description:The ISL62882 is a multiphase PWM buck regulator for microprocessor or graphics processor core power supply. The multiphase buck converter uses interleaved phases to reduce the total output voltage ripple with each phase carrying a portion of the total load current, providing better system performance, superior thermal management, lower component cost, reduced power dissipation, and smaller implementation area. The ISL62882 uses two integrated gate drivers to provide a complete solution. The PWM modulator is
5 X 5 MM, ROHS COMPLIANT, PLASTIC, MO-220WHHE-1, TQFN-40
Pin Count:
40
Manufacturer Package Code:
L40.5X5
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
18 Weeks
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Additional Feature:
ALSO HAS PWM CONTROL TECHNIQUE
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
HYSTERETIC CURRENT MODE
Input Voltage-Max:
5.25 V
Input Voltage-Min:
4.75 V
Input Voltage-Nom:
5 V
JESD-30 Code:
S-PQCC-N40
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
40
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HQCCN
Package Equivalence Code:
LCC40,.2SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
500 kHz
Temperature Grade:
OTHER
Terminal Finish:
MATTE TIN
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm
ISL62882HRTZ-T Frequently Asked Questions (FAQs)
Renesas provides a recommended PCB layout guide in the ISL62882HRTZ-T evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The ISL62882HRTZ-T has a resistive divider network that sets the output voltage. By changing the values of the resistors, you can configure the device for different output voltages. Renesas provides a voltage calculation formula in the datasheet to help with this process.
While the datasheet specifies a maximum input voltage of 25V, it's recommended to derate the input voltage to 22V to ensure reliable operation and prevent damage to the device.
The ISL62882HRTZ-T has built-in OCP and SCP features. To implement these features, you need to connect the OCP and SCP pins to the input voltage and output voltage rails, respectively, and set the threshold values using external resistors. Renesas provides more information on how to do this in the datasheet and application notes.
Renesas provides a thermal derating curve in the datasheet, which shows the maximum power dissipation of the device as a function of ambient temperature. This curve helps you determine the maximum output current and power dissipation of the device at different temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL62882HRTZ-T Overview

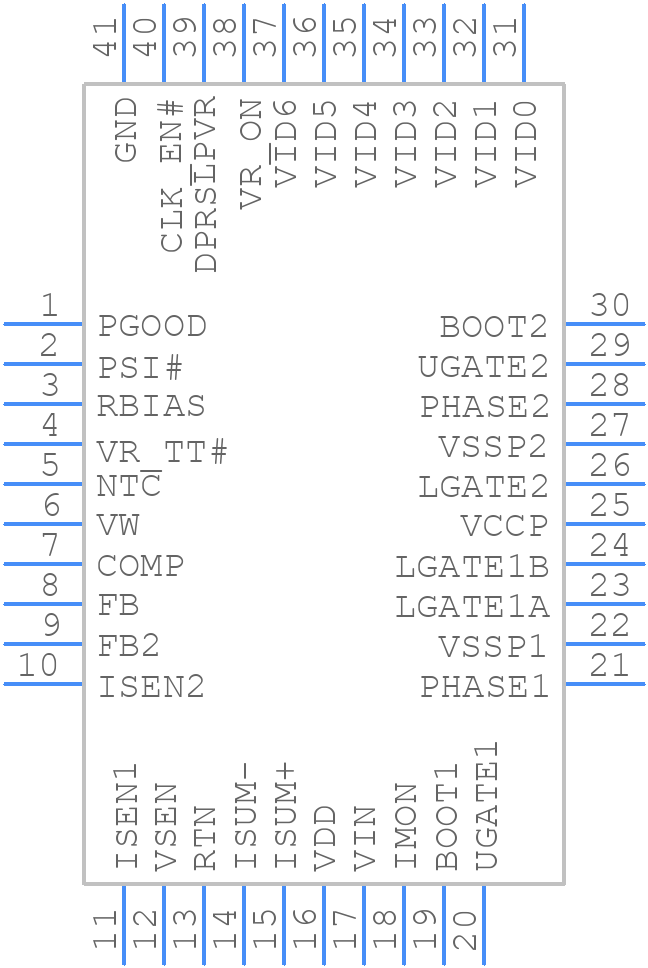

Use the download button to access the ISL62882HRTZ-T schematic symbol, PCB footprint, and 3D model.
