Description:The ISL62883 is a multiphase PWM buck regulator for microprocessor core power supply. The multiphase buck converter uses interleaved phase to reduce the total output voltage ripple with each phase carrying a portion of the total load current, providing better system performance, superior thermal management, lower component cost, reduced power dissipation, and smaller implementation area. The ISL62883 uses two integrated gate drivers and an external gate driver to provide a complete solution. The PWM modulat
The recommended PCB layout for optimal performance can be found in the ISL62883IRTZ evaluation board user manual or by contacting Renesas Electronics Corporation's technical support. A good layout should minimize noise, ensure proper thermal dissipation, and follow the datasheet's guidelines for component placement and routing.
To troubleshoot issues with the ISL62883IRTZ, start by reviewing the datasheet and application notes to ensure proper configuration and operation. Check for proper power supply, clock signal, and input/output connections. Use oscilloscopes and logic analyzers to debug signal waveforms and timing. If issues persist, contact Renesas Electronics Corporation's technical support for further assistance.
The ISL62883IRTZ has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink with a thermal resistance of less than 10°C/W, and ensure good airflow around the device. Follow the datasheet's guidelines for thermal pad connection and PCB layout to minimize thermal resistance.
The ISL62883IRTZ is a commercial-grade device, but Renesas Electronics Corporation offers automotive-grade and high-reliability versions of the device. Contact Renesas Electronics Corporation's sales or technical support to discuss specific requirements and availability of these versions.
To ensure EMC with the ISL62883IRTZ, follow the datasheet's guidelines for PCB layout, component selection, and shielding. Use proper filtering and decoupling techniques to minimize electromagnetic interference (EMI). Ensure that the device is properly grounded and that all cables and connectors are properly shielded.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL62883IRTZ Overview

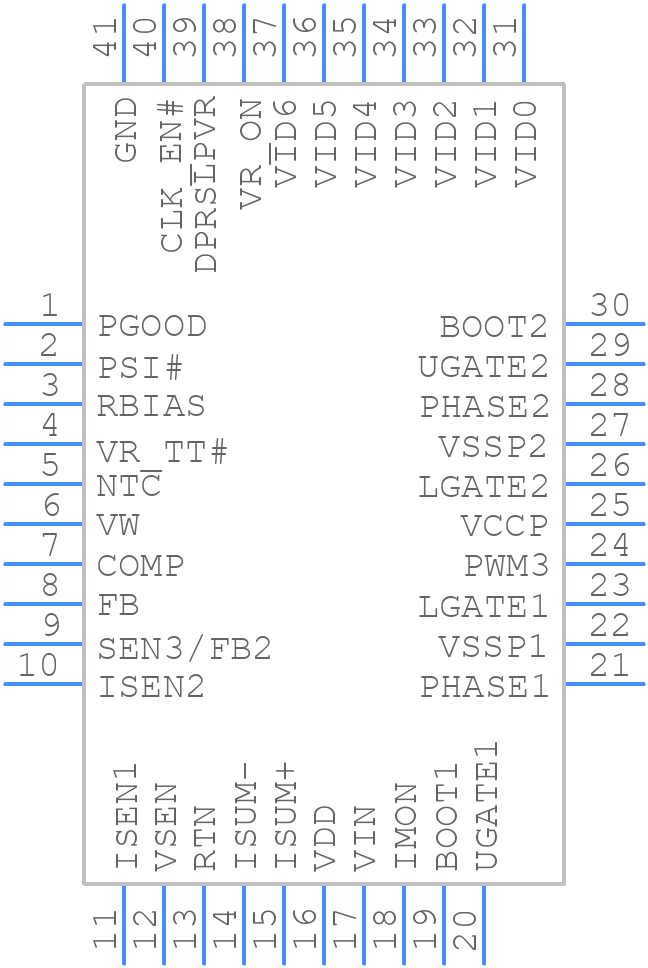

Use the download button to access the ISL62883IRTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
