Description:The ISL6292 is an integrated single-cell Li-ion or Li-polymer battery charger capable of operating with an input voltage as low as 2.4V. This charger is designed to work with various types of AC adapters or a USB port. The ISL6292 operates as a linear charger when the AC adapter is a voltage source. The battery is charged in a CC/CV (constant current/constant voltage) profile. The charge current is programmable with an external resistor up to 2A. The ISL6292 can also work with a current-limited adapter to m
The recommended PCB layout for optimal performance involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a separate power plane for the input and output voltages to reduce noise and improve stability.
To ensure the device is stable and does not oscillate, it is recommended to follow the recommended PCB layout, use the correct output capacitor value and type, and ensure that the input voltage is within the specified range. Additionally, it is recommended to add a small ceramic capacitor (e.g. 10nF) between the VIN pin and GND to filter out high-frequency noise.
The maximum output current that can be drawn from the device is 2A, as specified in the datasheet. However, it is recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.
While it is possible to use a different output capacitor value or type, it is not recommended as it may affect the stability and performance of the device. The recommended output capacitor value and type are specified in the datasheet and are chosen to ensure optimal performance and stability.
To handle thermal considerations for the device, it is recommended to follow the thermal design guidelines specified in the datasheet, including keeping the device away from heat sources, using a heat sink if necessary, and ensuring good airflow around the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6292-2CR4Z Overview

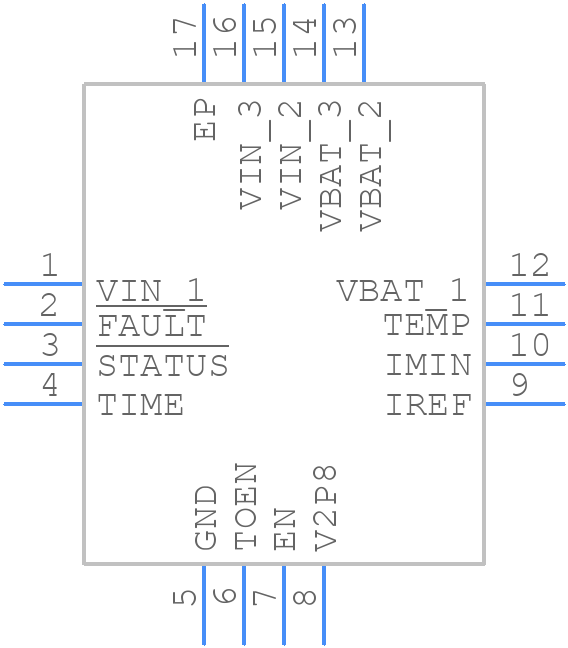

Use the download button to access the ISL6292-2CR4Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Power Management Circuits
