ISL6292-2CR5Z - Renesas Electronics

Description: The ISL6292 is an integrated single-cell Li-ion or Li-polymer battery charger capable of operating with an input voltage as low as 2.4V. This charger is designed to work with various types of AC adapters or a USB port. The ISL6292 operates as a linear charger when the AC adapter is a voltage source. The battery is charged in a CC/CV (constant current/constant voltage) profile. The charge current is programmable with an external resistor up to 2A. The ISL6292 can also work with a current-limited adapter to m

Download ISL6292-2CR5Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

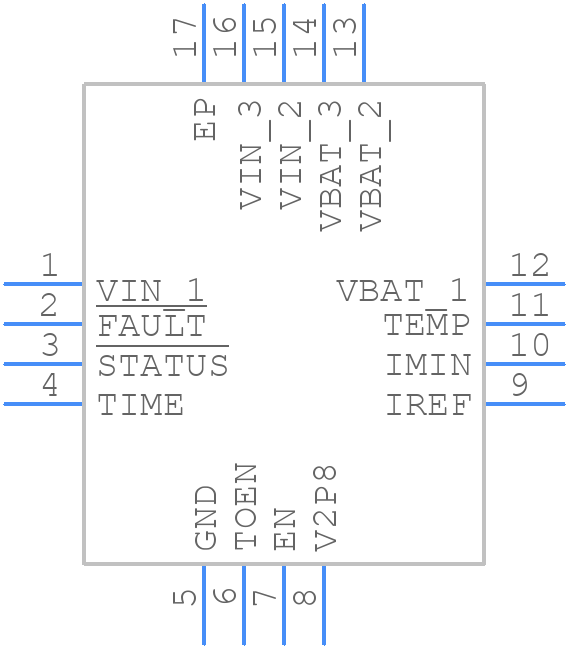

ISL6292-2CR5Z - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6292-2CR5Z - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L16.5x5B
click to zoom
3D Models
ISL6292-2CR5Z - Renesas Electronics - 3D model - Quad Flat No-Lead - L16.5x5B
click to zoom

ISL6292-2CR5Z Details

  • Manufacturer Part Number:

    ISL6292-2CR5Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Manufacturer Package Code:

    L16.5X5B

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-11-14

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ISL6292-2CR5Z Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in their application note AN1443, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The ISL6292-2CR5Z has a power-on reset (POR) circuit that ensures the device is properly reset during power-up. Additionally, the device has a configuration pin (CFG) that can be used to select the desired configuration during startup. Refer to the datasheet and application notes for specific guidelines on power-up sequencing and configuration.
  • Renesas recommends using low-ESR capacitors with a value of 10uF to 22uF for the input and output capacitors. The specific capacitor values and types may vary depending on the application and operating conditions. Refer to the datasheet and application notes for more information.
  • Renesas provides a troubleshooting guide in their application note AN1444, which covers common issues and their solutions. Additionally, engineers can use simulation tools and models provided by Renesas to analyze and debug their designs.
  • The ISL6292-2CR5Z has a maximum junction temperature (TJ) of 150°C. Engineers should ensure that the device is properly heatsinked and that the PCB design takes into account thermal conduction and convection. Refer to the datasheet and application notes for thermal design guidelines and calculations.
