Description:The ISL6308A is a three-phase PWM control IC with integrated MOSFET drivers. It provides a precision voltage regulation system for multiple applications including, but not limited to, high current low voltage point-of-load converters, embedded applications and other general purpose low voltage medium to high current applications. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multi-phase product families.
The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the component placement and routing symmetrical around the device can help to reduce thermal gradients.
To ensure the device is properly biased during startup, make sure to provide a stable input voltage (VIN) and a valid enable signal (EN) before applying the output voltage (VOUT). Also, ensure that the input voltage is within the recommended operating range and that the output voltage is set correctly using the feedback resistors.
The maximum capacitive load that the ISL6308ACRZ-T can drive is not explicitly stated in the datasheet, but it is generally recommended to limit the output capacitance to 10uF or less to ensure stability. However, the actual capacitive load limit may vary depending on the specific application and operating conditions.
To troubleshoot oscillations or instability issues with the ISL6308ACRZ-T, start by checking the PCB layout and ensuring that the device is properly decoupled and that the output voltage is properly filtered. Also, verify that the input voltage is stable and within the recommended operating range, and that the output voltage is set correctly using the feedback resistors. If the issue persists, try adding additional output capacitance or adjusting the compensation network.
The recommended input capacitor type and value for optimal performance with the ISL6308ACRZ-T is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter the input voltage and reduce noise and ripple.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6308ACRZ-T Overview

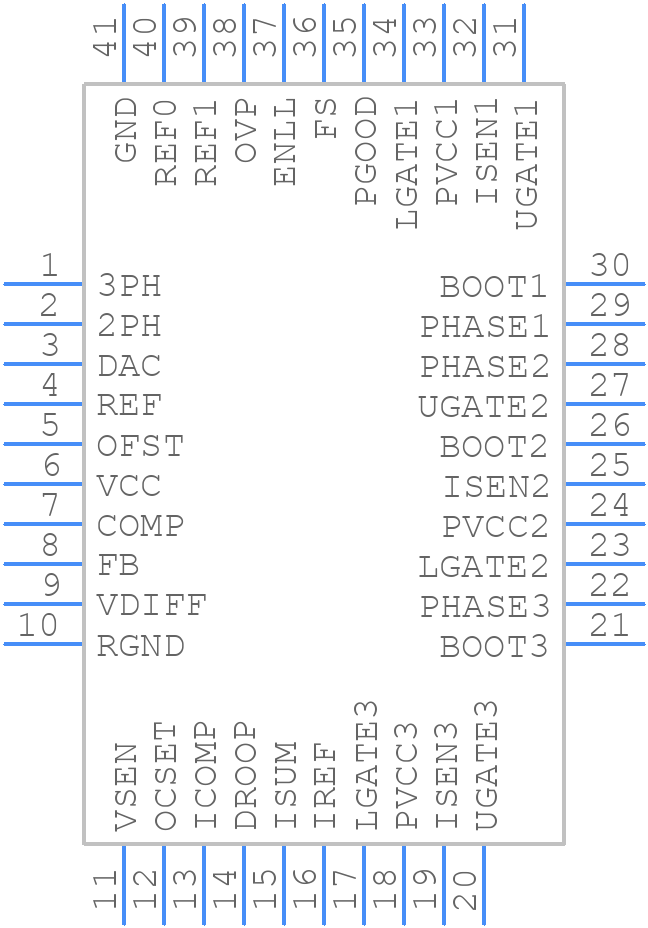

Use the download button to access the ISL6308ACRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
