Description:The ISL6308A is a three-phase PWM control IC with integrated MOSFET drivers. It provides a precision voltage regulation system for multiple applications including, but not limited to, high current low voltage point-of-load converters, embedded applications and other general purpose low voltage medium to high current applications. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multi-phase product families.
The recommended PCB layout for the ISL6308ACRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-frequency switching nodes (e.g., LX pin) away from sensitive analog nodes. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To select the right inductor for the ISL6308ACRZ, consider the following factors: inductance value, DC resistance, saturation current, and core material. A good starting point is to use an inductor with an inductance value between 1µH to 10µH, a DC resistance less than 100mΩ, and a saturation current greater than the peak current of the converter.
The ISL6308ACRZ can operate in an ambient temperature range of -40°C to +85°C. However, the maximum junction temperature (TJ) should not exceed +125°C. It's essential to ensure proper thermal design and heat dissipation to prevent overheating.
To troubleshoot the ISL6308ACRZ, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component selection, and soldering. Use an oscilloscope to monitor the switching waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Yes, the ISL6308ACRZ is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade ICs. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters and meets the required reliability standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6308ACRZ Overview

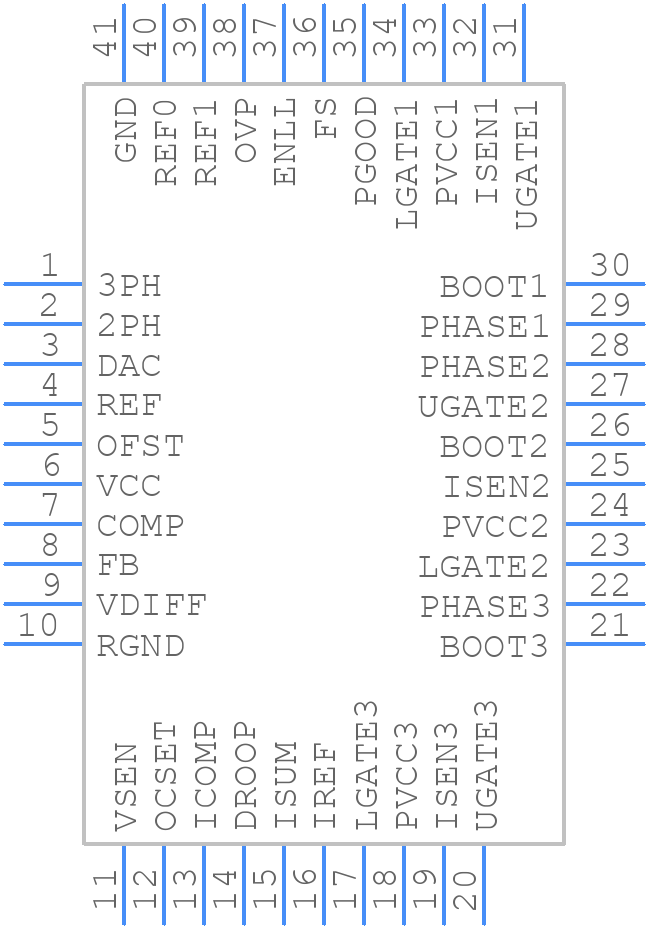

Use the download button to access the ISL6308ACRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
