ISL6313IRZ - Renesas Electronics

Description: The ISL6313 two-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multiphase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. One outstanding feature of this controller IC is its multiprocessor compatibility, allowing

Download ISL6313IRZ Model

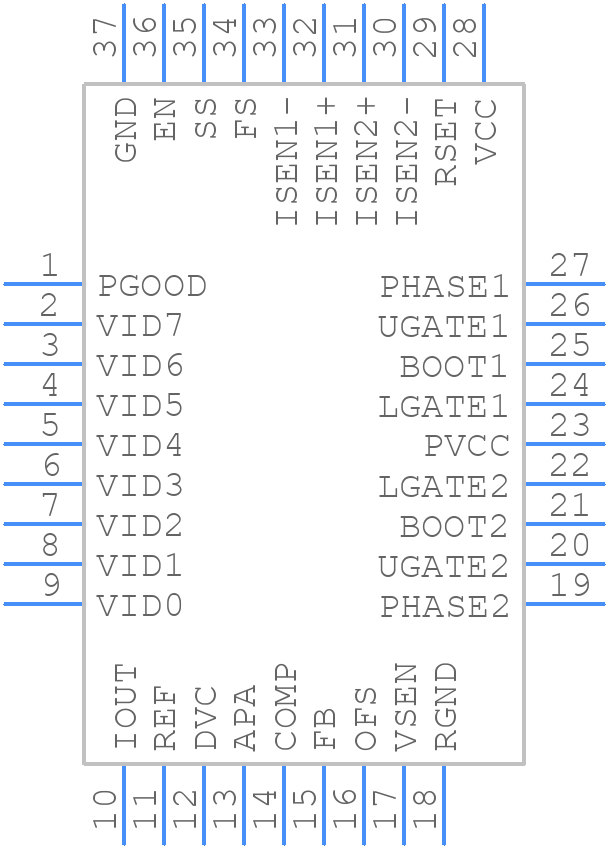

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL6313IRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L36.6x6
click to zoom
3D Models
ISL6313IRZ - Renesas Electronics  - 3D model - Quad Flat No-Lead - L36.6x6
click to zoom

ISL6313IRZ Details

  • Manufacturer Part Number:

    ISL6313IRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFN

  • Package Description:

    TQFN-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    L36.6X6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-11-16

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ISL6313IRZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ISL6313IRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer board with a dedicated power plane and a dedicated ground plane.
  • To select the right inductor for the ISL6313IRZ, consider the following factors: inductance value, current rating, DC resistance, and physical size. A good starting point is to use an inductor with an inductance value between 1uH to 4.7uH, a current rating of at least 10A, and a DC resistance of less than 10mΩ.
  • The ISL6313IRZ can operate in an ambient temperature range of -40°C to +85°C. However, the maximum junction temperature (TJ) should not exceed 125°C. It's essential to ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • Yes, the ISL6313IRZ can be used in a synchronous buck converter configuration. In this configuration, the internal high-side FET is used as the main switch, and an external low-side FET is used as the synchronous rectifier. This configuration can improve efficiency and reduce power losses.
  • The output voltage of the ISL6313IRZ can be adjusted by using a resistive divider network between the output voltage and the FB pin. The resistive divider network sets the feedback voltage, which determines the output voltage. The recommended resistive divider ratio is 1:1 to 1:3.
