Description:The ISL6327A controls microprocessor core voltage regulation by driving up to 6 synchronous-rectified buck channels in parallel. Multiphase buck converter architecture uses interleaved timing to multiply channel ripple frequency and reduce input and output ripple currents. Lower ripple results in fewer components, lower component cost, reduced power dissipation, and smaller implementation area. Microprocessor loads can generate load transients with extremely fast edge rates. The ISL6327A utilizes Intersil's
The recommended PCB layout for the ISL6327ACRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of input and output capacitors for the ISL6327ACRZ depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use a 10uF to 22uF input capacitor and a 22uF to 47uF output capacitor.
The ISL6327ACRZ can operate at a maximum ambient temperature of 85°C. However, the device's performance and reliability may be affected at high temperatures, so it's recommended to derate the device's performance and ensure proper thermal management.
The ISL6327ACRZ output voltage can be configured using the FB pin and an external resistor divider network. The resistor values can be calculated using the formula provided in the datasheet. Additionally, the output voltage can be adjusted using the VSENSE pin and an external resistor.
The minimum input voltage required for the ISL6327ACRZ to operate is 2.7V. However, the device's performance and efficiency may be affected at low input voltages, so it's recommended to use a minimum input voltage of 3.3V for optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6327ACRZ Overview

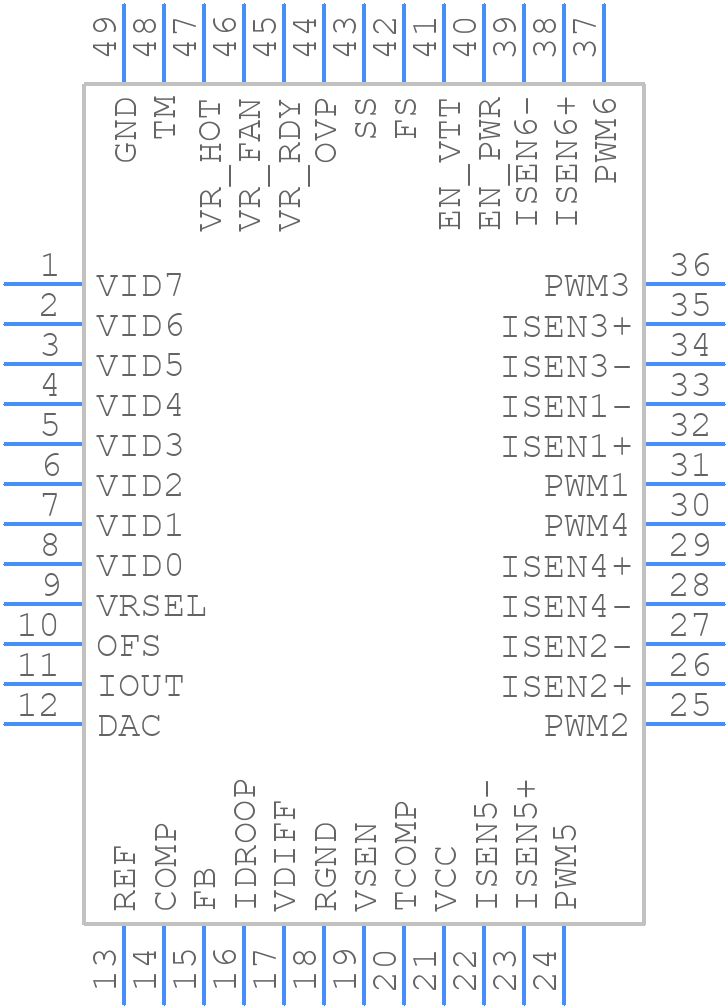

Use the download button to access the ISL6327ACRZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
