Description:The ISL6327 controls microprocessor core voltage regulation by driving up to 6 synchronous-rectified buck channels in parallel. Multiphase buck converter architecture uses interleaved timing to multiply channel ripple frequency and reduce input and output ripple currents. Lower ripple results in fewer components, lower component cost, reduced power dissipation, and smaller implementation area. Microprocessor loads can generate load transients with extremely fast edge rates. The ISL6327 utilizes Intersil's p
The recommended PCB layout for the ISL6327IRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To select the right output inductor for the ISL6327IRZ, consider the output voltage, output current, and switching frequency. A general rule of thumb is to choose an inductor with an inductance value between 0.5μH to 2.2μH, and a current rating that is at least 1.5 times the maximum output current. Additionally, consider the inductor's DC resistance, core material, and physical size.
The maximum junction temperature that the ISL6327IRZ can withstand is 150°C. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and to prevent thermal shutdown.
The ISL6327IRZ has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the GND pin. The value of the resistor determines the overcurrent threshold. Additionally, an external current sense resistor can be used to monitor the output current and implement overcurrent protection.
The recommended input capacitor type for the ISL6327IRZ is a low-ESR ceramic capacitor or a film capacitor. The recommended value is between 10μF to 22μF, depending on the input voltage and output current requirements. A larger input capacitor can help to reduce input voltage ripple and improve system stability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6327IRZ Overview

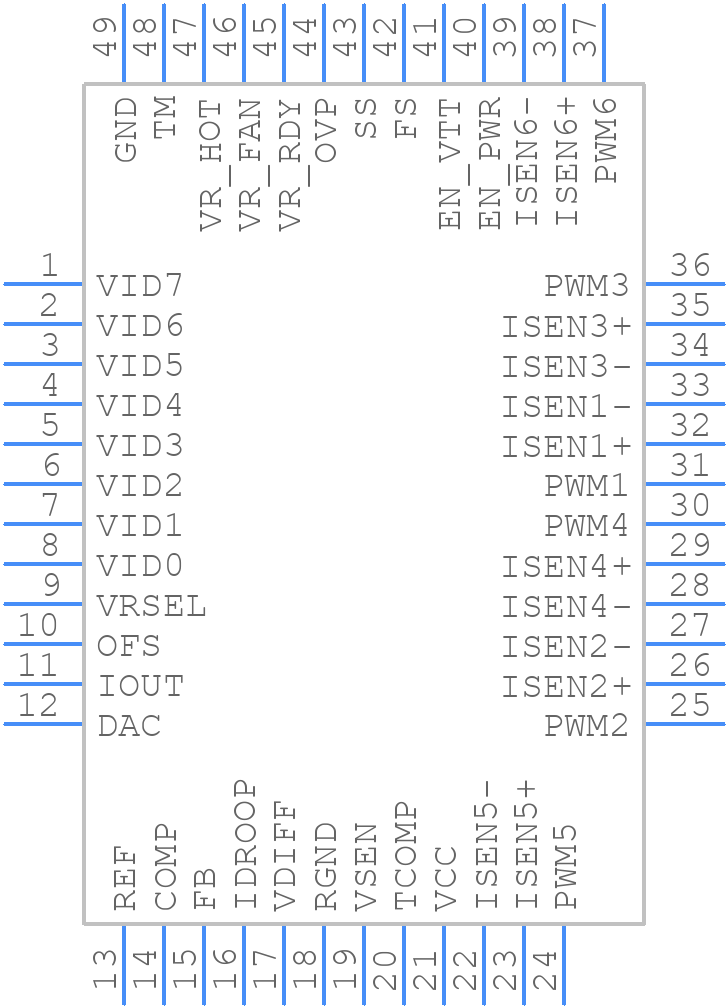

Use the download button to access the ISL6327IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
