Description:The ISL6333 three-phase PWM family of control ICs provide a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multi-phase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. The ISL6333 controllers are designed to be compatible with Intel VR11. 1 Appli
Renesas provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using a 4-layer stackup with a power plane and a ground plane.
The output inductor selection depends on the output voltage, output current, and switching frequency. Renesas provides a formula to calculate the minimum inductance value in the datasheet. Additionally, consider factors such as inductor core material, size, and DC resistance to ensure optimal performance.
The maximum junction temperature (Tj) for the ISL6333ACRZ is 125°C. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity. A good rule of thumb is to keep the junction temperature below 100°C.
To troubleshoot issues with the ISL6333ACRZ, start by checking the PCB layout, component values, and soldering quality. Use an oscilloscope to measure the output voltage, input voltage, and switching node waveforms. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Yes, the ISL6333ACRZ is suitable for high-reliability and automotive applications. Renesas provides a range of documentation, including an Automotive Electronics Council (AEC) qualification report, to support the use of the ISL6333ACRZ in these applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6333ACRZ Overview

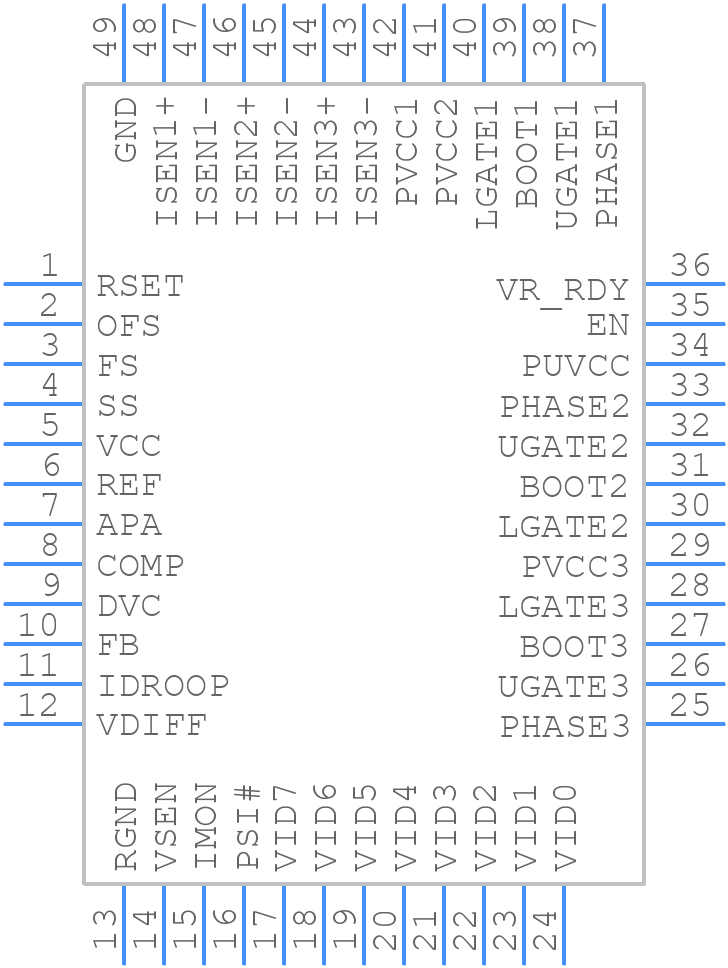

Use the download button to access the ISL6333ACRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
