Description:The ISL6333 three-phase PWM family of control ICs provide a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multi-phase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. The ISL6333 controllers are designed to be compatible with Intel VR11. 1 Appli
The recommended PCB layout for the ISL6333IRZ-T involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of input and output capacitors for the ISL6333IRZ-T depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use a 10uF to 22uF input capacitor and a 22uF to 47uF output capacitor.
The maximum ambient temperature that the ISL6333IRZ-T can operate at is 105°C. However, the device's performance and reliability may degrade at high temperatures, so it's recommended to operate the device at a temperature below 85°C for optimal performance and reliability.
The ISL6333IRZ-T has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. The value of the resistor and capacitor determines the overcurrent threshold and response time. It's recommended to consult the datasheet and application notes for more information on implementing overcurrent protection with the ISL6333IRZ-T.
Yes, the ISL6333IRZ-T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's recommended to consult the datasheet and application notes for more information on the device's reliability and qualification data.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6333IRZ-T Overview

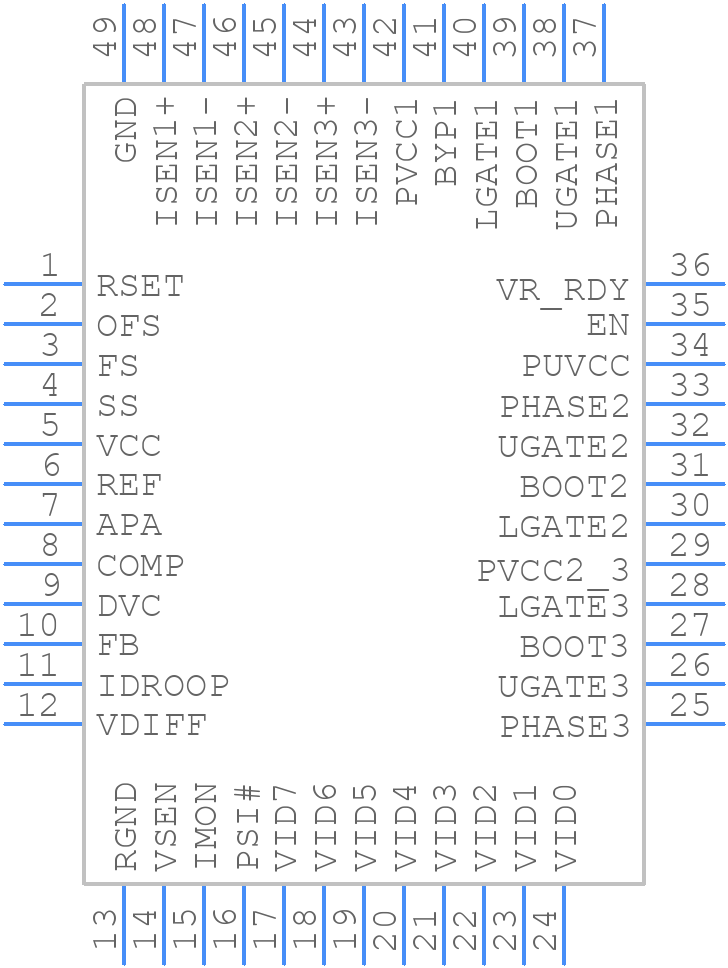

Use the download button to access the ISL6333IRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
