Description:The ISL6333 three-phase PWM family of control ICs provide a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multi-phase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. The ISL6333 controllers are designed to be compatible with Intel VR11. 1 Appli
The recommended PCB layout for the ISL6333IRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of external components for the ISL6333IRZ depends on the specific application requirements, such as output voltage, output current, and switching frequency. A good starting point is to use the component values recommended in the datasheet, and then adjust them based on the specific requirements of the application. It's also recommended to use a component selection tool or consult with an experienced engineer to ensure the correct component selection.
The maximum ambient temperature that the ISL6333IRZ can operate at is 105°C, but this can be derated based on the specific application requirements and the thermal design of the system. It's recommended to consult the datasheet and the thermal design guidelines to ensure the device operates within the recommended temperature range.
To troubleshoot common issues with the ISL6333IRZ, it's recommended to follow a systematic approach, starting with checking the input voltage, output voltage, and current. Then, check the PCB layout and component selection to ensure they meet the recommended guidelines. Use an oscilloscope to check for noise and ringing on the output voltage, and use a thermal camera to check for hotspots on the device. Consult the datasheet and application notes for specific troubleshooting guidelines.
Yes, the ISL6333IRZ can be used in high-reliability applications, but it's recommended to consult the datasheet and the specific requirements of the application to ensure the device meets the necessary standards and qualifications. Additionally, it's recommended to follow the recommended design guidelines and testing procedures to ensure the device operates reliably in the specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6333IRZ Overview

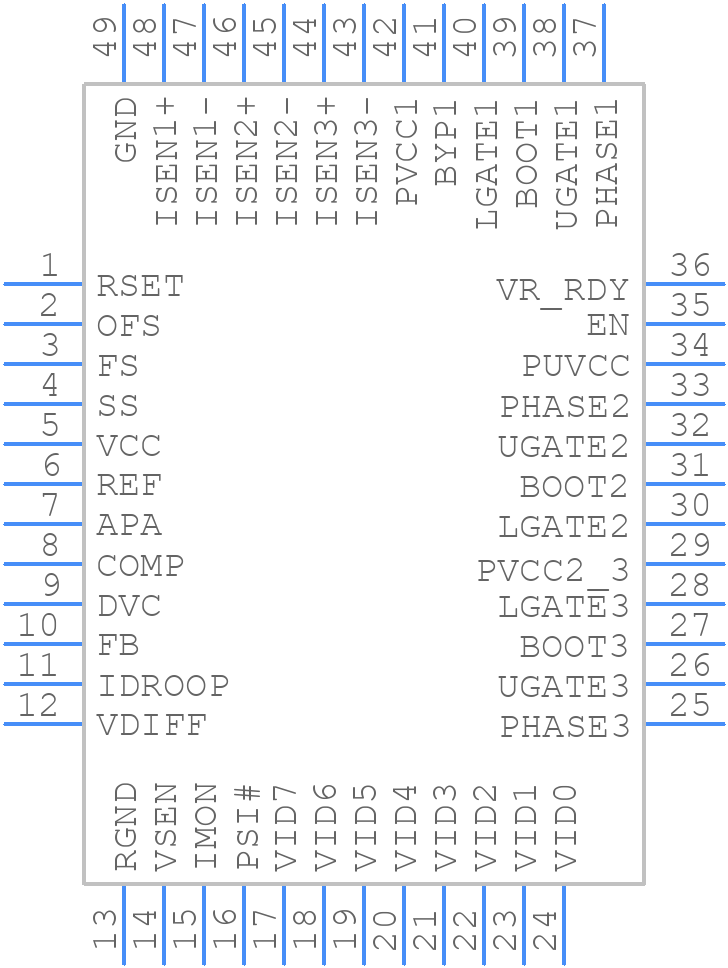

Use the download button to access the ISL6333IRZ schematic symbol, PCB footprint, and 3D model.
