Description:The ISL6334D controls voltage regulator by driving up to 4 interleaved synchronous-rectified buck channels in parallel. This multiphase architecture results in multiplying channel ripple frequency and reducing input and output ripple currents. Lower ripple results in fewer components, lower cost, reduced power dissipation and smaller implementation area. Microprocessor loads can generate load transients with extremely fast edge rates and requires high efficiency at light load. The ISL6334D utilizes Intersil
A good PCB layout for the ISL6334DIRZ involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, it is essential to choose the correct output capacitor value and type. A minimum output capacitance of 22μF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
The ISL6334DIRZ can operate in an ambient temperature range of -40°C to +85°C. However, the maximum junction temperature (TJ) should not exceed 125°C to ensure reliable operation.
The power dissipation of the ISL6334DIRZ can be calculated using the formula: Pd = (Vin x Iin) - (Vout x Iout), where Vin is the input voltage, Iin is the input current, Vout is the output voltage, and Iout is the output current.
The EN (Enable) pin is used to enable or disable the ISL6334DIRZ. When the EN pin is pulled high, the device is enabled, and when it is pulled low, the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6334DIRZ Overview

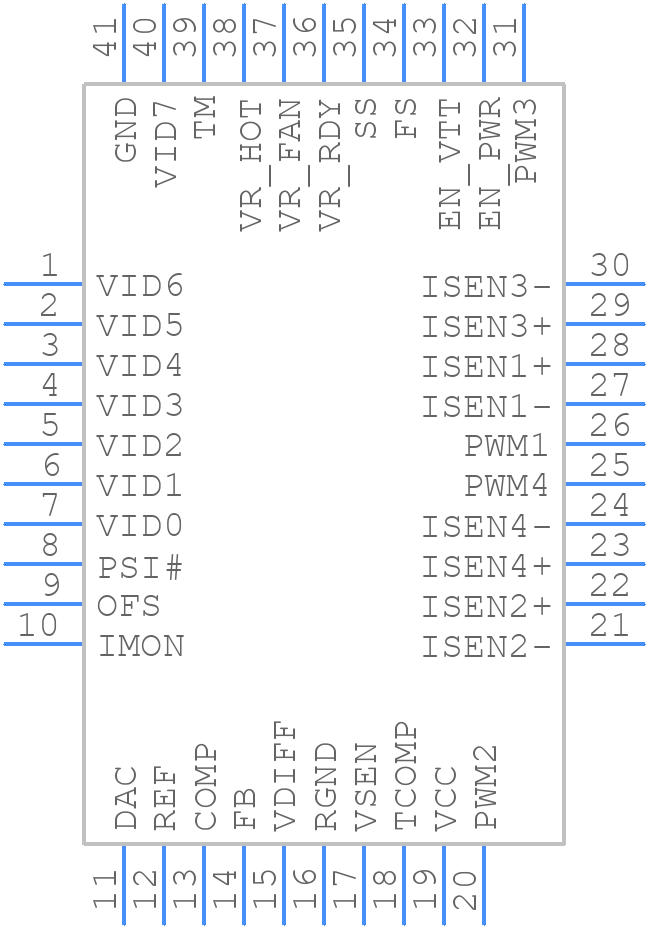

Use the download button to access the ISL6334DIRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
