Description:The ISL6341, ISL6341A, ISL6341B, ISL6341C makes simple work out of implementing a complete control and protection scheme for a DC/DC stepdown converter driving N-Channel MOSFETs in a synchronous buck topology. Since it can work with either 5V or 12V supplies, this one family of IC's can be used in a wide variety of applications within a system. It integrates the control, gate drivers, output adjustment, monitoring and protection functions into a single 10 Ld Thin DFN package. The ISL6341, ISL6341A, ISL6341B
SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
330 kHz
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
ISL6341CIRZ-T Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal performance involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a separate power plane for the input and output voltages.
To ensure the device is stable and does not oscillate, it is recommended to follow the recommended component values and PCB layout guidelines, and to ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions and the input voltage should be well-regulated.
The maximum output current that can be safely drawn from the device is dependent on the specific application and the thermal design of the system. However, as a general guideline, the device can deliver up to 1.5A of output current. It is recommended to consult the datasheet and to perform thermal analysis to determine the maximum safe output current for a specific application.
The device has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, it is still recommended to add external protection circuitry, such as a voltage supervisor or a crowbar circuit, to protect the device from extreme voltage conditions. Additionally, it is recommended to use a TVS diode or a zener diode to protect the device from voltage spikes and transients.
The recommended input voltage range for the device is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6341CIRZ-T Overview

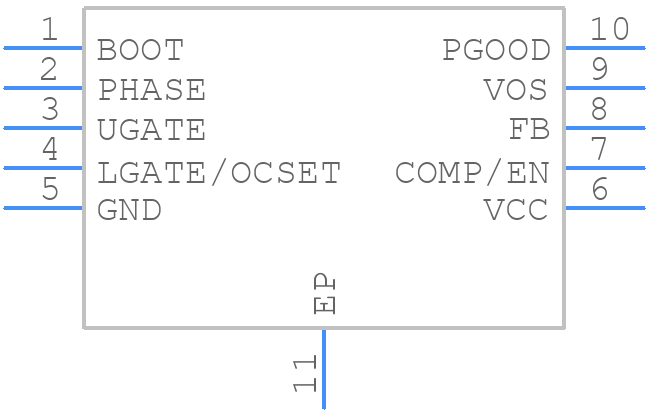

Use the download button to access the ISL6341CIRZ-T schematic symbol, PCB footprint, and 3D model.
