Description:The ISL6341, ISL6341A, ISL6341B, ISL6341C makes simple work out of implementing a complete control and protection scheme for a DC/DC stepdown converter driving N-Channel MOSFETs in a synchronous buck topology. Since it can work with either 5V or 12V supplies, this one family of IC's can be used in a wide variety of applications within a system. It integrates the control, gate drivers, output adjustment, monitoring and protection functions into a single 10 Ld Thin DFN package. The ISL6341, ISL6341A, ISL6341B
SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Packing Method:
TR, 13 INCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
330 kHz
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
ISL6341CRZ-T Frequently Asked Questions (FAQs)
A good PCB layout for the ISL6341CRZ-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output voltage should be decoupled with a capacitor, and the input voltage should be filtered with a capacitor and a resistor. It's also crucial to ensure that the device is operated within its recommended operating conditions.
The ISL6341CRZ-T is rated for operation from -40°C to +85°C ambient temperature range. However, the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
Yes, the ISL6341CRZ-T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific application requirements.
To troubleshoot issues with the ISL6341CRZ-T, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to check for any oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for guidance or contact Renesas Electronics Corporation's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6341CRZ-T Overview

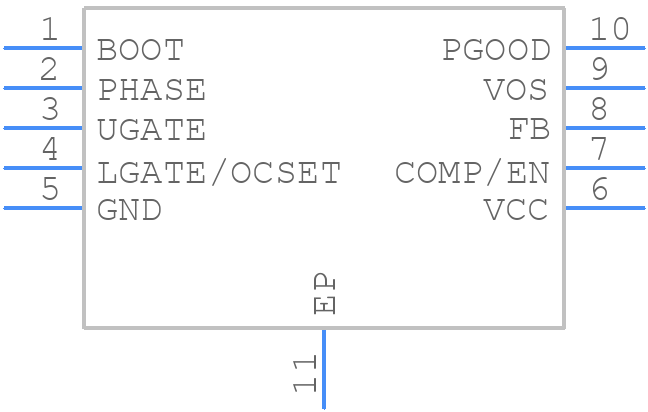

Use the download button to access the ISL6341CRZ-T schematic symbol, PCB footprint, and 3D model.
