Description:The ISL6341, ISL6341A, ISL6341B, ISL6341C makes simple work out of implementing a complete control and protection scheme for a DC/DC stepdown converter driving N-Channel MOSFETs in a synchronous buck topology. Since it can work with either 5V or 12V supplies, this one family of IC's can be used in a wide variety of applications within a system. It integrates the control, gate drivers, output adjustment, monitoring and protection functions into a single 10 Ld Thin DFN package. The ISL6341, ISL6341A, ISL6341B
SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
330 kHz
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
ISL6341IRZ-T Frequently Asked Questions (FAQs)
The recommended PCB layout for the ISL6341IRZ-T involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of input and output capacitors for the ISL6341IRZ-T depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. The capacitor values can be adjusted based on the output voltage and current requirements.
The maximum ambient temperature range for the ISL6341IRZ-T is -40°C to +85°C. However, the device can operate up to +125°C with derating. It's recommended to follow the thermal derating guidelines provided in the datasheet to ensure reliable operation.
The ISL6341IRZ-T has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. The OCP threshold can be set by adjusting the value of the resistor and capacitor. Additionally, the device also has a short-circuit protection feature that can be enabled by connecting the SCP pin to a resistor and a capacitor.
The recommended input voltage range for the ISL6341IRZ-T is 2.7V to 5.5V. However, the device can operate with input voltages as low as 2.5V and as high as 6V, but with reduced performance and efficiency.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6341IRZ-T Overview

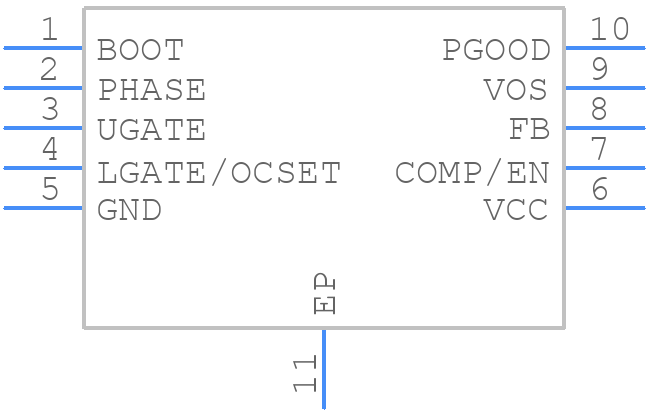

Use the download button to access the ISL6341IRZ-T schematic symbol, PCB footprint, and 3D model.
