Description:The ISL6341, ISL6341A, ISL6341B, ISL6341C makes simple work out of implementing a complete control and protection scheme for a DC/DC stepdown converter driving N-Channel MOSFETs in a synchronous buck topology. Since it can work with either 5V or 12V supplies, this one family of IC's can be used in a wide variety of applications within a system. It integrates the control, gate drivers, output adjustment, monitoring and protection functions into a single 10 Ld Thin DFN package. The ISL6341, ISL6341A, ISL6341B
SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
330 kHz
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
ISL6341IRZ Frequently Asked Questions (FAQs)
The recommended PCB layout for the ISL6341IRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of input and output capacitors for the ISL6341IRZ depends on the specific application requirements. Generally, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. The datasheet provides guidelines for capacitor selection, but it's recommended to consult with a capacitor manufacturer for specific recommendations.
The maximum ambient temperature range for the ISL6341IRZ is -40°C to +85°C. However, the device can operate at a higher temperature range with derating. It's recommended to consult the datasheet for specific derating guidelines.
The ISL6341IRZ has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the GND pin. The value of the resistor determines the overcurrent threshold. The datasheet provides guidelines for selecting the resistor value based on the desired overcurrent threshold.
Yes, the ISL6341IRZ is suitable for high-reliability applications. It's manufactured using a high-reliability process and has undergone rigorous testing to ensure its reliability. However, it's recommended to consult with Renesas Electronics Corporation for specific reliability data and guidelines for using the device in high-reliability applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6341IRZ Overview

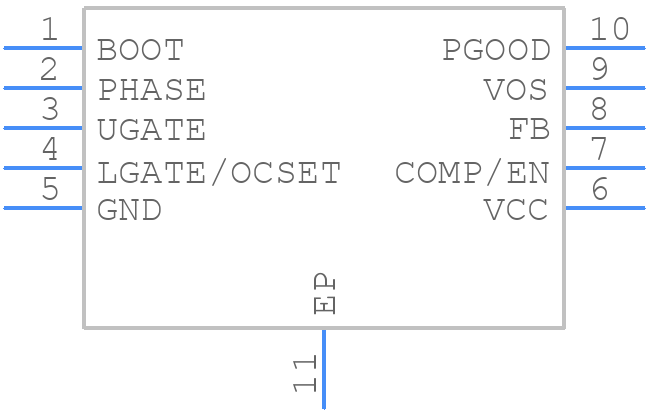

Use the download button to access the ISL6341IRZ schematic symbol, PCB footprint, and 3D model.
