Description:Fully compliant with VR12™ specifications, the ISL6363 provides a complete solution for microprocessor core and graphics power supplies. It provides two Voltage Regulators (VRs) with three integrated gate drivers. The first output (VR1) can be configured as a 4, 3, 2 or 1-phase VR while the second output (VR2) is a 1-phase VR. The two VRs share a serial control bus to communicate with the CPU and achieve lower cost and smaller board area compared with a two-chip approach. Based on Renesas' Robust Ripple Reg
The recommended PCB layout for optimal performance involves keeping the power stage components (e.g., FETs, inductors, and capacitors) close together, using a solid ground plane, and minimizing the length of the high-current paths. Additionally, it's essential to follow the datasheet's guidelines for component placement and routing.
To optimize the compensation network, you'll need to consider factors such as the output voltage, output current, and switching frequency. A good starting point is to use the datasheet's recommended compensation values and then adjust them based on your specific application's requirements. You may also need to use simulation tools or empirical methods to fine-tune the compensation network.
The ISL6363CRTZ has a maximum junction temperature of 150°C. To ensure reliable operation, you should ensure that the device is properly heatsinked, and the PCB is designed to dissipate heat efficiently. You should also consider the thermal resistance of the package and the PCB, as well as the ambient temperature of the operating environment.
To troubleshoot issues with the ISL6363CRTZ, start by checking the basics, such as the power supply, input voltage, and output voltage. Use an oscilloscope to monitor the waveforms and look for signs of oscillation or instability. Check the datasheet for troubleshooting guidelines and application notes, and consider using simulation tools or seeking support from Renesas Electronics Corporation or a qualified engineer.
The ISL6363CRTZ is designed to meet EMI and EMC regulatory requirements, but you'll still need to consider the overall system design and layout to ensure compliance. This includes using proper shielding, filtering, and grounding techniques, as well as following the datasheet's guidelines for EMI and EMC. You may also need to perform EMI and EMC testing to ensure compliance with regulatory requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6363CRTZ Overview

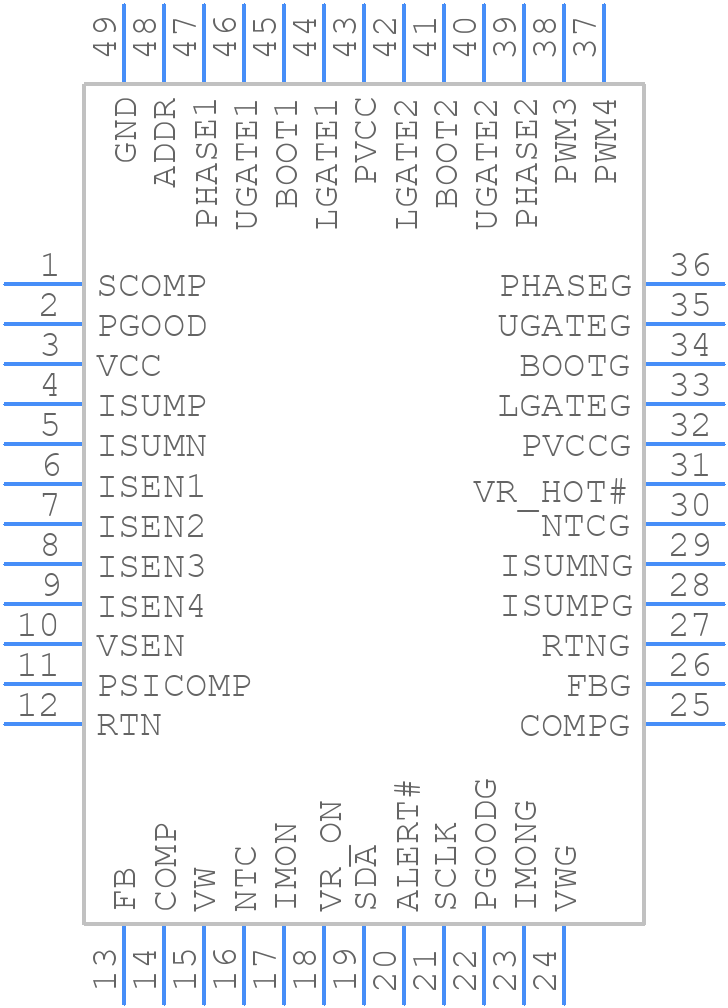

Use the download button to access the ISL6363CRTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
