Description:Fully compliant with VR12™ specifications, the ISL6363 provides a complete solution for microprocessor core and graphics power supplies. It provides two Voltage Regulators (VRs) with three integrated gate drivers. The first output (VR1) can be configured as a 4, 3, 2 or 1-phase VR while the second output (VR2) is a 1-phase VR. The two VRs share a serial control bus to communicate with the CPU and achieve lower cost and smaller board area compared with a two-chip approach. Based on Renesas' Robust Ripple Reg
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise and EMI.
Renesas provides a component selection guide in their datasheet, which includes formulas and guidelines for selecting the right inductor, capacitors, and resistors based on the specific application requirements and operating conditions.
The ISL6363IRTZ-T has an operating temperature range of -40°C to +125°C, but it's recommended to derate the device's performance and power handling at higher temperatures to ensure reliability and prevent thermal shutdown.
The ISL6363IRTZ-T has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. Additionally, the device has a short-circuit detection feature that can be implemented by monitoring the voltage on the VSENSE pin and comparing it to a threshold value.
The recommended startup sequence for the ISL6363IRTZ-T is to first apply the input voltage, then the enable signal, and finally the clock signal. This ensures that the device powers up correctly and avoids any potential latch-up or malfunction.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6363IRTZ-T Overview

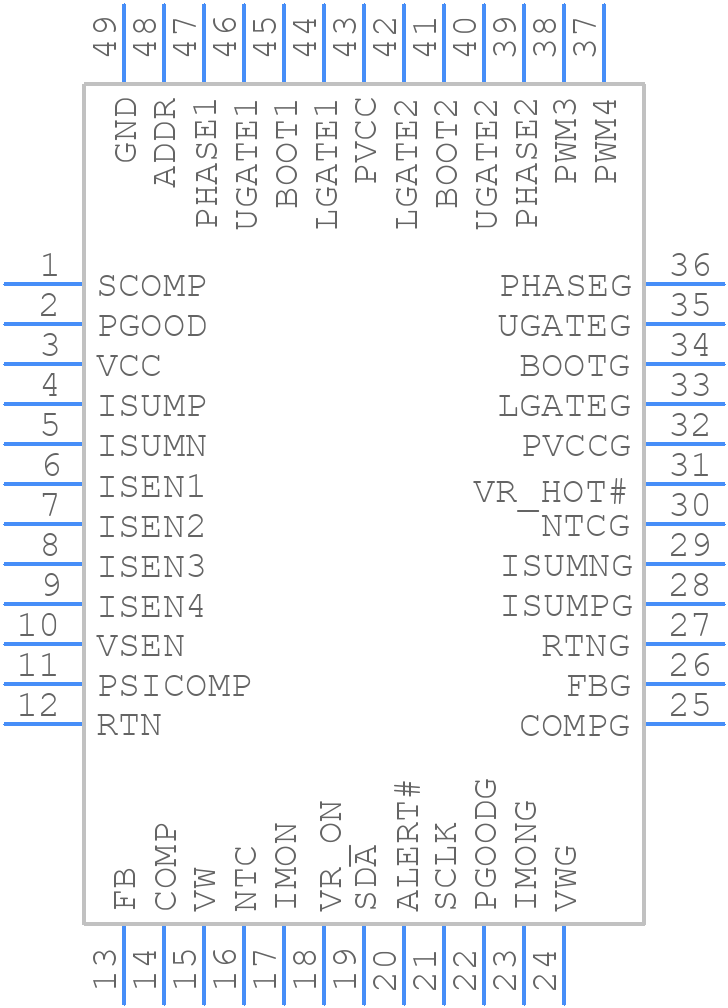

Use the download button to access the ISL6363IRTZ-T schematic symbol, PCB footprint, and 3D model.
