Description:Fully compliant with VR12™ specifications, the ISL6363 provides a complete solution for microprocessor core and graphics power supplies. It provides two Voltage Regulators (VRs) with three integrated gate drivers. The first output (VR1) can be configured as a 4, 3, 2 or 1-phase VR while the second output (VR2) is a 1-phase VR. The two VRs share a serial control bus to communicate with the CPU and achieve lower cost and smaller board area compared with a two-chip approach. Based on Renesas' Robust Ripple Reg
A good PCB layout for the ISL6363IRTZ involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
Choose input capacitors with low ESR and high ripple current rating. Output capacitors should have low ESR and be able to handle the output current. A good starting point is to use 10uF to 22uF ceramic capacitors for both input and output.
A good thermal design for the ISL6363IRTZ involves using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the IC. The PCB should also have a solid ground plane to help dissipate heat.
To troubleshoot issues with the ISL6363IRTZ, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly sized and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for more guidance.
Yes, the ISL6363IRTZ is qualified for high-reliability and high-temperature applications. However, it's essential to follow the recommended operating conditions, derating, and thermal design guidelines to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6363IRTZ Overview

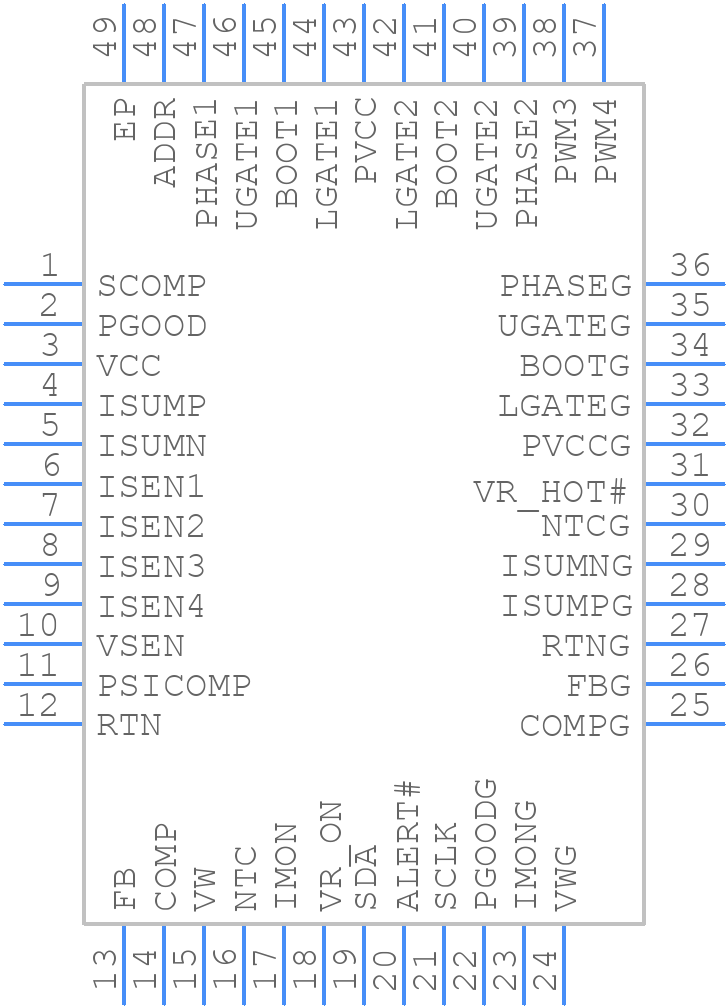

Use the download button to access the ISL6363IRTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
