Description:The ISL6377 is fully compliant with AMD Fusion™ SVI 2. 0 and provides a complete solution for microprocessor and graphics processor core power. The ISL6377 controller supports two Voltage Regulators (VRs) with three integrated gate drivers and three optional external drivers for maximum flexibility. The Core VR can be configured for 4-, 3-, 2-, or 1-phase operation while the Northbridge VR supports 2- or 1-phase configurations. The two VRs share a serial control bus to communicate with the AMD CPU and achie
Renesas provides a recommended PCB layout in the datasheet, but it's also important to follow general guidelines for high-frequency switching regulator design, such as minimizing loop area, using a solid ground plane, and placing decoupling capacitors close to the IC.
The datasheet provides guidelines for inductor selection, but it's also important to consider factors such as inductor core material, size, and saturation current. Renesas also provides an inductor selection guide that can be used in conjunction with the datasheet.
The datasheet specifies an operating temperature range of -40°C to +85°C, but it's also important to consider the maximum junction temperature (TJ) of 125°C and ensure that the device is properly cooled to prevent overheating.
Renesas provides a troubleshooting guide in the datasheet, but it's also important to use oscilloscopes and other measurement tools to identify the root cause of the issue. Additionally, ensuring that the PCB layout and component selection meet the recommended guidelines can help prevent issues from occurring in the first place.
Yes, the ISL6377HRZ is designed for high-reliability applications and has undergone rigorous testing to ensure its performance and stability over time. However, it's also important to follow proper design and manufacturing practices to ensure the overall reliability of the system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6377HRZ Overview

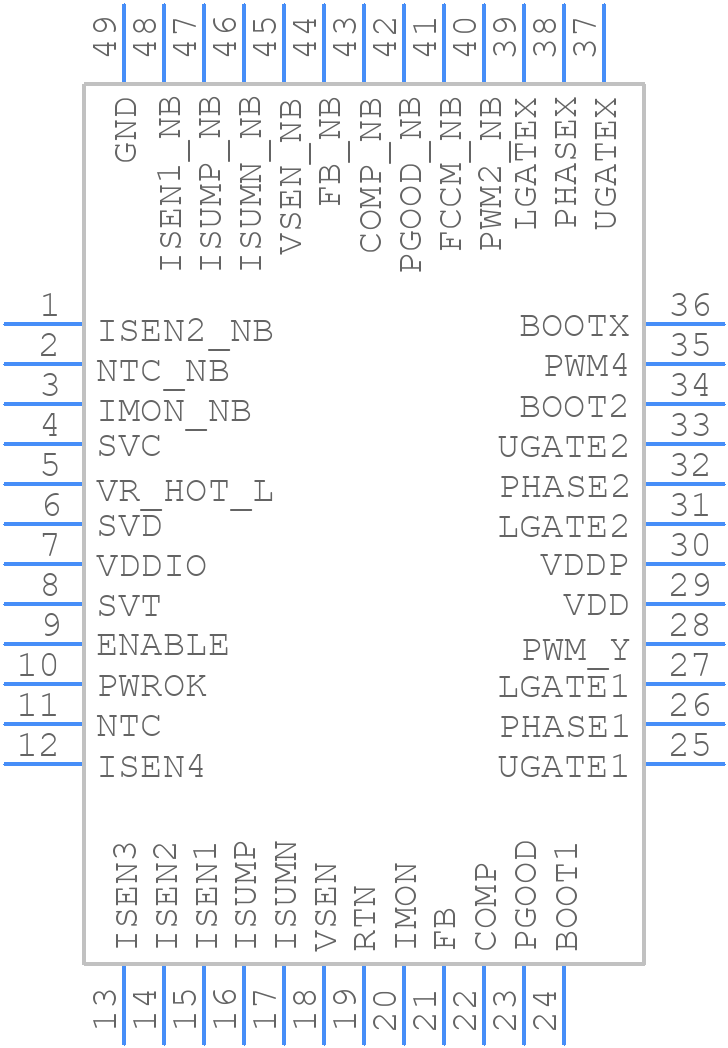

Use the download button to access the ISL6377HRZ schematic symbol, PCB footprint, and 3D model.
