- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ISL6402IRZ-T
- Part Number ISL6402IRZ-T
- Manufacturer Renesas Electronics
- Pin Count 29
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - L28.5x5-2021
- Released Date Apr 3, 2021
- Last Modified Date Oct 24, 2023 7:30 PM UTC
- Pinout / Pin List Click Here (Member Only)
ISL6402IRZ-T Details
-
Manufacturer Part Number:
ISL6402IRZ-T
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2017-11-01
-
Manufacturer:
Renesas Electronics Corporation
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING CONTROLLER
-
Control Mode:
CURRENT-MODE
-
Control Technique:
PULSE WIDTH MODULATION
ISL6402IRZ-T Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the ISL6402IRZ-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve performance.
-
The selection of input and output capacitors for the ISL6402IRZ-T depends on the specific application requirements. In general, it is recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. The capacitor values can be adjusted based on the specific requirements of the application.
-
The maximum ambient temperature that the ISL6402IRZ-T can operate in is 85°C. However, the device can operate at higher temperatures with derating. It is recommended to consult the datasheet and the application notes for more information on temperature derating.
-
To ensure that the ISL6402IRZ-T is operating within its safe operating area (SOA), it is recommended to monitor the device's temperature, input voltage, and output current. The device should be operated within the recommended operating conditions specified in the datasheet. Additionally, it is recommended to use thermal management techniques such as heat sinks and thermal interfaces to keep the device temperature within the recommended range.
-
The recommended start-up sequence for the ISL6402IRZ-T involves applying the input voltage first, followed by the enable signal. The enable signal should be applied after the input voltage has reached its nominal value. This ensures that the device starts up correctly and avoids any potential damage.
Trust Checks
Community Provided
System Verified
Community Approved
ISL6402IRZ-T Overview

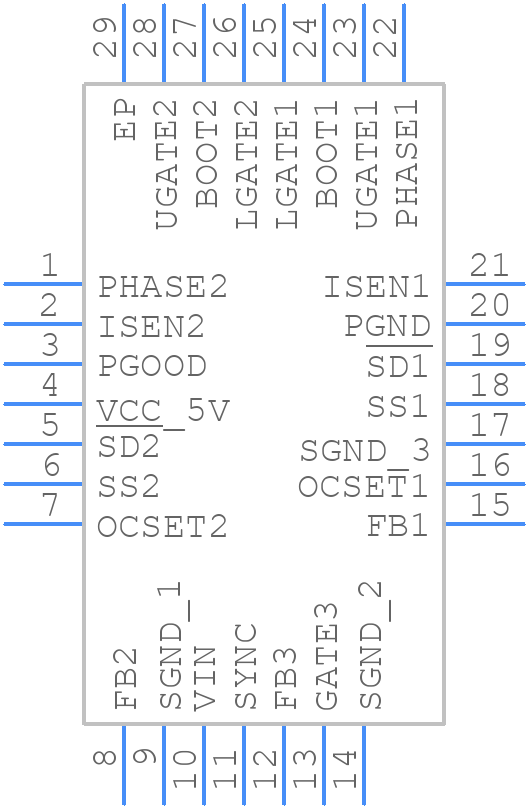

Use the download button to access the ISL6402IRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL64,
or try a keyword search, such as Switching Regulator or Controllers
