ISL6410AIUZ-TK - Renesas Electronics

Description: The ISL6410, ISL6410A are synchronous current-mode PWM regulators designed to provide a total DC/DC solution for microcontrollers, microprocessors, CPLDs, FPGAs, core processors/BBP/MAC, and ASICs. The ISL6410 should be selected for applications using 3.3V ±10% as an input voltage and the ISL6410A in applications requiring 5.0V ±10%. These synchronous current mode PWM regulators have integrated N- and P-Channel power MOSFETs and provide pre-set pin programmable outputs. Synchronous rectification with intern

Download ISL6410AIUZ-TK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

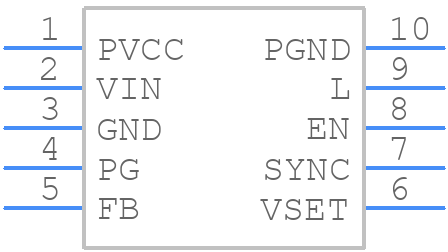

Symbol
ISL6410AIUZ-TK - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6410AIUZ-TK - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M10.118 (JEDEC MO-187BA) 10 LEAD MINI SMALL OUTLINE PLASTIC PACKAGE
click to zoom
3D Models
ISL6410AIUZ-TK - Renesas Electronics - 3D model - Small Outline Packages - M10.118 (JEDEC MO-187BA) 10 LEAD MINI SMALL OUTLINE PLASTIC PACKAGE
click to zoom

ISL6410AIUZ-TK Details

  • Manufacturer Part Number:

    ISL6410AIUZ-TK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    M10.118

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.3 A

  • Output Voltage-Max:

    1.218 V

  • Output Voltage-Min:

    1.182 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL6410AIUZ-TK Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements. Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. The capacitor selection guide is provided in the datasheet and application notes.
  • The ISL6410AIUZ-TK has an operating temperature range of -40°C to +85°C, but it's recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet to ensure reliable operation.
  • The ISL6410AIUZ-TK has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to the input voltage. The overcurrent threshold can be set by selecting the appropriate resistor value according to the datasheet.
  • The recommended input voltage range for the ISL6410AIUZ-TK is 2.7V to 5.5V, but it can operate with an input voltage as low as 2.5V with reduced performance. It's essential to ensure the input voltage is within the recommended range for optimal performance and reliability.
