Description:The ISL6410, ISL6410A are synchronous current-mode PWM regulators designed to provide a total DC/DC solution for microcontrollers, microprocessors, CPLDs, FPGAs, core processors/BBP/MAC, and ASICs. The ISL6410 should be selected for applications using 3.3V ±10% as an input voltage and the ISL6410A in applications requiring 5.0V ±10%. These synchronous current mode PWM regulators have integrated N- and P-Channel power MOSFETs and provide pre-set pin programmable outputs. Synchronous rectification with intern
A good PCB layout for the ISL6410AIUZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure proper power-up and initialization of the ISL6410AIUZ, make sure to follow the recommended power-up sequence, which involves applying VCC before EN. Also, ensure that the input voltage is within the recommended range, and that the device is properly decoupled with capacitors. Additionally, check that the EN pin is properly driven to enable the device.
The ISL6410AIUZ has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, and use a heat sink if necessary. Also, follow the recommended PCB layout guidelines to minimize thermal resistance. Additionally, monitor the device's temperature and adjust the operating conditions accordingly to prevent overheating.
To troubleshoot issues with the ISL6410AIUZ, start by verifying the power supply and input signals. Check the device's output signals using an oscilloscope or logic analyzer. Also, review the PCB layout and ensure it meets the recommended guidelines. If the issue persists, consult the datasheet and application notes, and consider contacting Renesas Electronics Corporation's technical support for further assistance.
Yes, the ISL6410AIUZ is a high-frequency device and requires proper EMI and EMC considerations. Ensure that the PCB layout is designed to minimize EMI radiation, and use shielding and filtering techniques to reduce electromagnetic interference. Additionally, follow the recommended guidelines for component placement and routing to minimize EMI.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6410AIUZ Overview

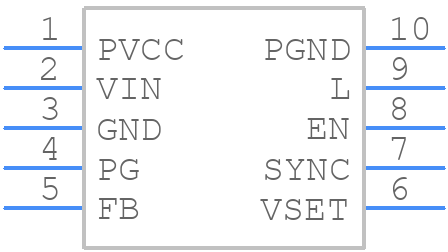

Use the download button to access the ISL6410AIUZ schematic symbol, PCB footprint, and 3D model.
