Description:The ISL6420A simplifies the implementation of a complete control and protection scheme for a high-performance DC/DC buck converter. It is designed to drive N-Channel MOSFETs in a synchronous rectified buck topology. The ISL6420A integrates control, output adjustment, monitoring and protection functions into a single package. Additionally, the IC features an external reference voltage tracking mode for externally referenced buck converter applications and DDR termination supplies, as well as a voltage margin
The recommended PCB layout for the ISL6420AIRZ involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
The selection of input and output capacitors for the ISL6420AIRZ depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage ripple, while the output capacitor should be able to handle the output voltage ripple and provide sufficient filtering. A minimum capacitance of 10uF is recommended for both input and output capacitors.
The maximum ambient temperature range for the ISL6420AIRZ is -40°C to +85°C. However, the device can operate up to +125°C with derating. It is recommended to consult the datasheet for specific temperature derating information.
Proper thermal management of the ISL6420AIRZ involves providing adequate heat sinking, using a thermal pad or heat sink, and ensuring good airflow around the device. The device has an exposed pad on the bottom that can be connected to a heat sink or thermal pad to improve thermal dissipation.
The recommended input voltage range for the ISL6420AIRZ is 2.7V to 5.5V. However, the device can operate with input voltages as low as 2.5V, but with reduced performance and efficiency.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6420AIRZ Overview

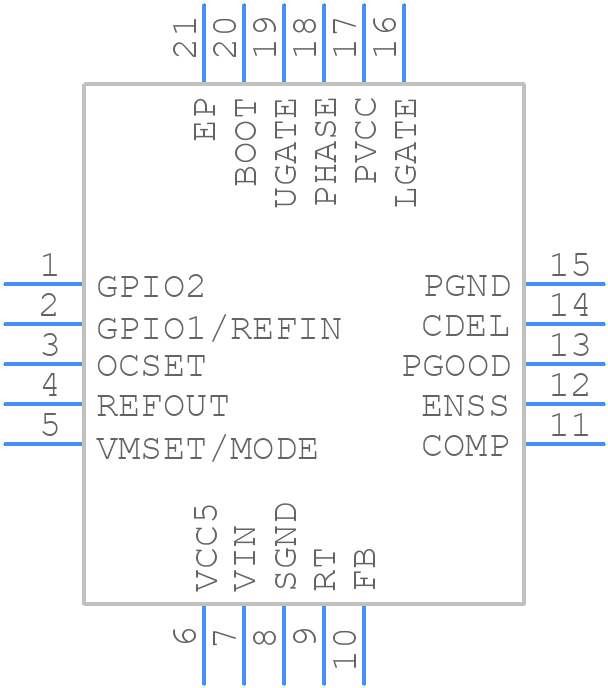

Use the download button to access the ISL6420AIRZ schematic symbol, PCB footprint, and 3D model.
