Description:The ISL6423B is a highly integrated voltage regulator and interface IC, specifically designed for supplying power and control signals from advanced satellite set-top box (STB) modules to the low noise blocks (LNBs) of singe antenna ports. The device consists of a current-mode boost PWM and a low-noise linear regulator along with the circuitry required for 22kHz tone generation, modulation and I2C device interface. The device makes the total LNB supply design simple, efficient and compact with low external c
A good PCB layout for the ISL6423BERZ-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
To ensure the ISL6423BERZ-T operates within its specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, the device should be operated within its specified power dissipation limits to prevent overheating.
The recommended input capacitor value for the ISL6423BERZ-T is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended due to its low equivalent series resistance (ESR) and high ripple current capability.
To troubleshoot issues with the ISL6423BERZ-T, start by verifying the input voltage, output voltage, and output current are within the specified limits. Check the PCB layout and ensure it meets the recommended layout guidelines. Use an oscilloscope to measure the output voltage and current waveforms, and look for signs of oscillation or instability. If the issue persists, try replacing the input and output capacitors, and ensure the device is operated within its specified temperature range.
Yes, the ISL6423BERZ-T is suitable for use in high-reliability and automotive applications. It has been qualified to the AEC-Q100 standard, which ensures it meets the stringent requirements of the automotive industry. Additionally, it has a high MTBF (mean time between failures) rating, making it suitable for use in high-reliability applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6423BERZ-T Overview

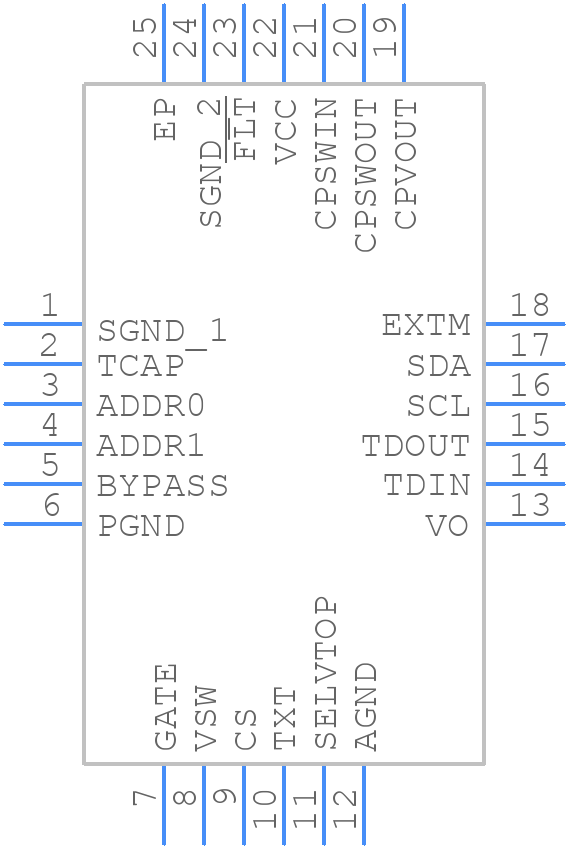

Use the download button to access the ISL6423BERZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL64,
or try a keyword search, such as Switching Regulator or Controllers
