Description:The ISL6442 is a high-performance, triple output controller that provides a single high-frequency power solution primarily for Broadband, DSL and Networking applications. This device integrates complete control, monitoring and protection functions for two synchronous buck PWM controllers and one linear controller. Input voltage ripple and total RMS input current is substantially reduced by synchronized 180° out-of-phase operation of the two PWMs. The two PWM buck converters provide simple voltage mode contr
A good PCB layout for the ISL6442IAZ-TK involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve stability.
To ensure the ISL6442IAZ-TK operates within its SOA, you should monitor the device's junction temperature, input voltage, output current, and power dissipation. Make sure to follow the recommended operating conditions and thermal management guidelines outlined in the datasheet, and consider using thermal simulation tools to optimize your design.
When selecting input and output capacitors for the ISL6442IAZ-TK, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. The ESR should be low to minimize power losses, and the capacitance value should be sufficient to filter out noise and ripple. The voltage rating should be higher than the maximum input or output voltage to ensure reliability.
To troubleshoot issues with the ISL6442IAZ-TK, start by verifying the device's operating conditions, including the input voltage, output current, and temperature. Check the PCB layout and component selection to ensure they meet the recommended guidelines. Use oscilloscopes and other measurement tools to identify the source of the issue, and consider consulting the datasheet and application notes for guidance.
The enable pin (EN) of the ISL6442IAZ-TK allows you to control the device's operation. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or other control functions in your design. Make sure to follow the recommended enable pin voltage and timing guidelines to ensure proper operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6442IAZ-TK Overview

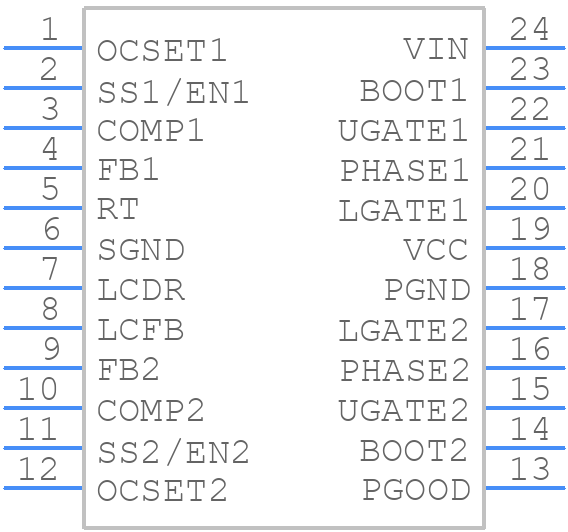

Use the download button to access the ISL6442IAZ-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL64,
or try a keyword search, such as Switching Regulator or Controllers
