Description:The ISL6442 is a high-performance, triple output controller that provides a single high-frequency power solution primarily for Broadband, DSL and Networking applications. This device integrates complete control, monitoring and protection functions for two synchronous buck PWM controllers and one linear controller. Input voltage ripple and total RMS input current is substantially reduced by synchronized 180° out-of-phase operation of the two PWMs. The two PWM buck converters provide simple voltage mode contr
The recommended layout and placement for the ISL6442IAZ involves placing the device close to the power source, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, it is recommended to use a Kelvin connection for the sense lines and to keep the high-current paths short and wide.
Optimizing the compensation network for the ISL6442IAZ involves selecting the correct values for the compensation resistors and capacitors based on the specific application requirements. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the results of stability analysis and transient response testing.
The maximum allowed voltage on the EN pin of the ISL6442IAZ is 6V. Exceeding this voltage can cause damage to the device.
The ISL6442IAZ is rated for operation up to 125°C, but it is recommended to derate the device's performance and ensure proper thermal management to prevent overheating. Additionally, the device's reliability and lifespan may be affected by prolonged exposure to high temperatures.
Troubleshooting issues with the ISL6442IAZ involves identifying the root cause of the problem, which can be done by checking the device's operating conditions, layout, and component values. Common issues include incorrect compensation, inadequate decoupling, and poor layout. It is recommended to consult the datasheet and application notes, and to use simulation tools and oscilloscope measurements to aid in the troubleshooting process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6442IAZ Overview

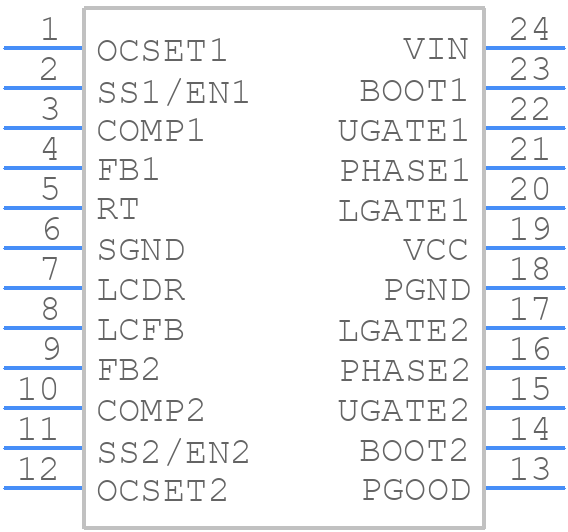

Use the download button to access the ISL6442IAZ schematic symbol, PCB footprint, and 3D model.
