Description:The ISL6446A is a high-performance, triple output controller that provides a single high-frequency power solution primarily for Broadband, DSL and Networking applications. This device integrates complete control, monitoring and protection functions for two synchronous buck PWM controllers and one linear controller. Input voltage ripple and total RMS input current is substantially reduced by synchronized 180° out-of-phase operation of the two PWMs. The two PWM buck converters provide simple voltage mode cont
Renesas provides a recommended PCB layout in the application note AN1321, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise and EMI.
The selection of input and output capacitors depends on the specific application requirements, such as input voltage, output voltage, and output current. Renesas provides guidelines for capacitor selection in the datasheet and application notes, including recommendations for capacitor type, value, and ESR.
The ISL6446AIAZ-TK has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
Renesas provides troubleshooting guidelines in the application notes and datasheet, including checks for proper component selection, PCB layout, and soldering. Additionally, Renesas offers technical support and resources, such as FAQs and knowledge base articles, to help engineers troubleshoot and resolve common issues.
Yes, the ISL6446AIAZ-TK is compatible with lead-free soldering processes, and Renesas provides guidelines for lead-free soldering in the datasheet and application notes. However, it's essential to follow the recommended soldering profile and temperature range to ensure reliable operation and prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6446AIAZ-TK Overview

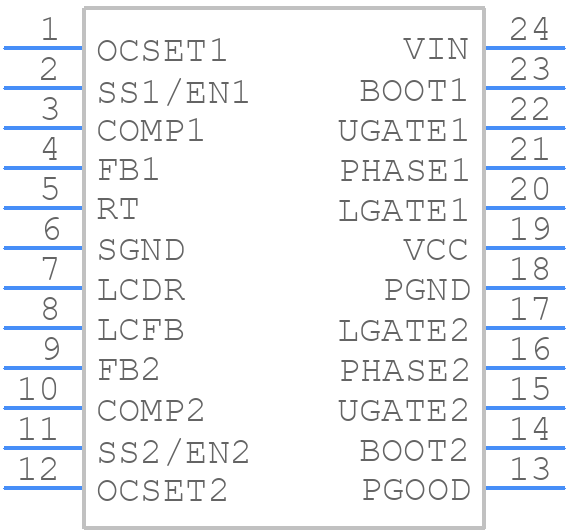

Use the download button to access the ISL6446AIAZ-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL64,
or try a keyword search, such as Switching Regulator or Controllers
