Description:The ISL6446 is a high-performance, triple output controller that provides a single high-frequency power solution primarily for broadband, DSL and networking applications. This device integrates complete control, monitoring and protection functions for two synchronous buck PWM controllers and one linear controller. Input voltage ripple and total RMS input current is substantially reduced by synchronized 180° out-of-phase operation of the two PWMs. The two PWM buck converters provide simple voltage mode contr
A good PCB layout for the ISL6446IAZ-T7 should prioritize minimizing the loop area of the high-frequency switching nodes, keeping the power traces short and wide, and using a solid ground plane to reduce EMI. A 4-layer board with a dedicated power plane and a separate ground plane is recommended.
To ensure the ISL6446IAZ-T7 operates within its SOA, monitor the input voltage, output voltage, and output current. Make sure the device is not subjected to excessive voltage or current stress, and that the thermal design is adequate to keep the junction temperature within the recommended range.
When selecting the output inductor and capacitors for the ISL6446IAZ-T7, consider the inductor's saturation current, DC resistance, and core loss. Choose capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the output voltage. Ensure the inductor and capacitor values are within the recommended ranges specified in the datasheet.
To troubleshoot issues with the ISL6446IAZ-T7, start by verifying the PCB layout and component selection. Check for proper decoupling, correct component values, and adequate thermal design. Use an oscilloscope to monitor the switching waveforms and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
The ISL6446IAZ-T7 has a high power density, so thermal management is critical. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce the thermal resistance. Monitor the junction temperature and ensure it remains within the recommended range to prevent thermal shutdown or damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6446IAZ-T7 Overview

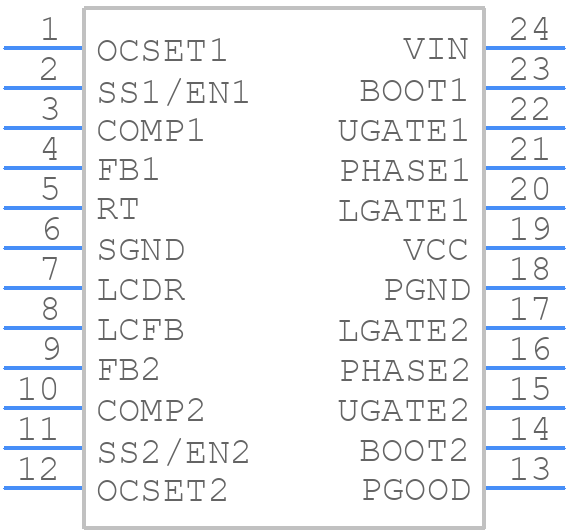

Use the download button to access the ISL6446IAZ-T7 schematic symbol, PCB footprint, and 3D model.
