Description:The ISL6446 is a high-performance, triple output controller that provides a single high-frequency power solution primarily for broadband, DSL and networking applications. This device integrates complete control, monitoring and protection functions for two synchronous buck PWM controllers and one linear controller. Input voltage ripple and total RMS input current is substantially reduced by synchronized 180° out-of-phase operation of the two PWMs. The two PWM buck converters provide simple voltage mode contr
Renesas provides a recommended PCB layout in the application note AN1321, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise and EMI.
The selection of input and output capacitors depends on the specific application requirements, such as input voltage, output voltage, and output current. Renesas provides guidelines for capacitor selection in the datasheet and application notes, including recommendations for capacitor type, value, and ESR.
The ISL6446IAZ-T7A has an operating temperature range of -40°C to +85°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliable operation.
The ISL6446IAZ-T7A has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the output voltage. The value of the resistor determines the overcurrent threshold, and the device will shut down if the output current exceeds this threshold.
The recommended startup sequence for the ISL6446IAZ-T7A is to first apply the input voltage, then the enable signal (EN), and finally the output voltage. This sequence ensures that the device starts up correctly and avoids any potential latch-up or damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6446IAZ-T7A Overview

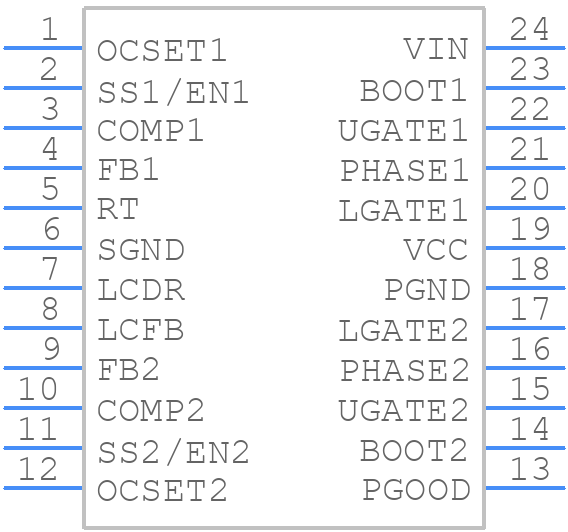

Use the download button to access the ISL6446IAZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL64,
or try a keyword search, such as Switching Regulator or Controllers
