Description:The ISL6506A and ISL6506B complement other power building blocks (voltage regulators) in ACPI-compliant designs for microprocessor and computer applications. They integrate the control of the 5VDUAL and 3. 3VDUAL rails into an 8 Ld EPAD SOIC package. The ISL6506A and ISL6506B's operating mode (active outputs or sleep outputs) is selectable through two digital control pins; S3 and S5. A completely integrated linear regulator generates the 3. 3VDUAL voltage plane from the ATX supply's 5VSB output during sleep
A good PCB layout for the ISL6506ACBZ-T should prioritize thermal management, minimize noise coupling, and ensure proper power and ground routing. Renesas provides a recommended PCB layout in the datasheet and application notes, which should be followed for optimal performance.
The selection of input and output capacitors for the ISL6506ACBZ-T depends on the specific application requirements, such as input voltage, output voltage, and ripple current. Renesas provides guidelines for capacitor selection in the datasheet and application notes, and engineers should consider factors such as capacitance, ESR, and voltage rating when selecting capacitors.
The ISL6506ACBZ-T has an operating ambient temperature range of -40°C to +85°C, but the maximum junction temperature is 125°C. Engineers should ensure that the device is operated within the recommended temperature range to ensure reliable operation and prevent overheating.
The ISL6506ACBZ-T has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the output voltage. The value of the resistor determines the overcurrent threshold, and engineers should consult the datasheet and application notes for guidance on implementing overcurrent protection.
The recommended input voltage range for the ISL6506ACBZ-T is 4.5V to 14V, but the device can operate with input voltages as low as 3.3V and as high as 15V. However, operating the device outside the recommended input voltage range may affect its performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6506ACBZ-T Overview

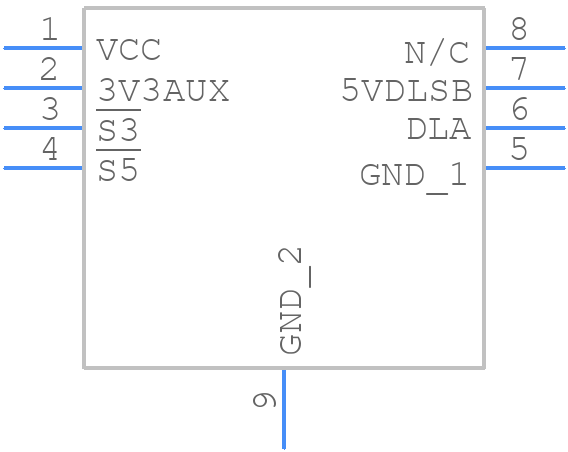

Use the download button to access the ISL6506ACBZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Power Management Circuits
