Description:The ISL6506A and ISL6506B complement other power building blocks (voltage regulators) in ACPI-compliant designs for microprocessor and computer applications. They integrate the control of the 5VDUAL and 3. 3VDUAL rails into an 8 Ld EPAD SOIC package. The ISL6506A and ISL6506B's operating mode (active outputs or sleep outputs) is selectable through two digital control pins; S3 and S5. A completely integrated linear regulator generates the 3. 3VDUAL voltage plane from the ATX supply's 5VSB output during sleep
The recommended PCB layout for the ISL6506ACBZ involves placing the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. Additionally, the high-current paths should be kept short and wide to minimize resistance and inductance. A solid ground plane is also recommended to reduce noise and improve thermal performance.
The selection of input and output capacitors for the ISL6506ACBZ depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. The datasheet provides guidelines for capacitor selection, but additional analysis and simulation may be necessary to ensure optimal performance.
The maximum ambient temperature that the ISL6506ACBZ can operate in is 85°C, as specified in the datasheet. However, the device can operate at higher temperatures with derating. It's essential to consider the thermal performance of the device and the overall system design to ensure reliable operation.
To troubleshoot issues with the ISL6506ACBZ, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly selected and placed. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for troubleshooting guidelines and potential solutions.
The ISL6506ACBZ is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional analysis and testing. Renesas Electronics Corporation provides a range of devices with enhanced reliability and safety features, such as the ISL6506AQBZ, which is qualified to the Automotive Electronics Council (AEC) Q100 standard. Consult with Renesas Electronics Corporation or a qualified engineer to determine the suitability of the ISL6506ACBZ or alternative devices for high-reliability or safety-critical applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6506ACBZ Overview

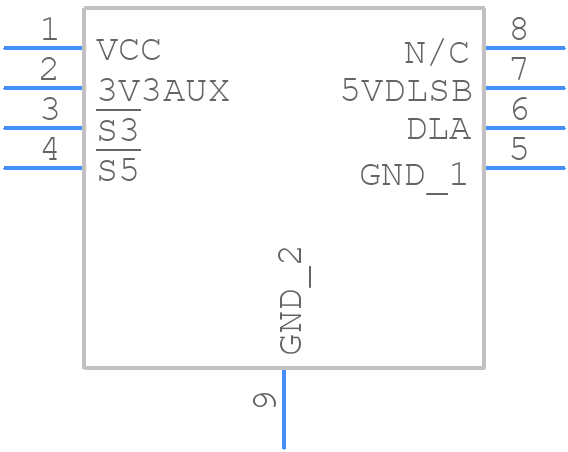

Use the download button to access the ISL6506ACBZ schematic symbol, PCB footprint, and 3D model.
