Description:The ISL6535 is a high performance synchronous controller for demanding DC/DC converter applications. It provides overcurrent fault protection and is designed to safely start-up into prebiased output loads. The output voltage of the converter can be precisely regulated to as low as 0.597V, with a maximum tolerance of ±1% over the commercial temperature range, and ±1.5% over the industrial temperature range. The ISL6535 provides simple, single feedback loop, voltage mode control with fast transient response.
The recommended PCB layout for the ISL6535CBZ-T involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To select the right output inductor for the ISL6535CBZ-T, consider the maximum output current, output voltage, and switching frequency. A good starting point is to use an inductor with a saturation current rating of at least 1.5 times the maximum output current, and a DC resistance (DCR) of less than 100 mΩ. The inductor's physical size, core material, and shielding also need to be considered.
The maximum junction temperature that the ISL6535CBZ-T can withstand is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
Yes, the ISL6535CBZ-T is rated for operation up to 125°C, making it suitable for high-temperature environments. However, the device's performance and reliability may degrade at higher temperatures, and the maximum operating temperature should be derated based on the application's specific requirements.
To troubleshoot issues with the ISL6535CBZ-T, start by checking the input voltage, output voltage, and output current. Verify that the input capacitors are properly sized and placed, and that the output inductor is suitable for the application. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6535CBZ-T Overview

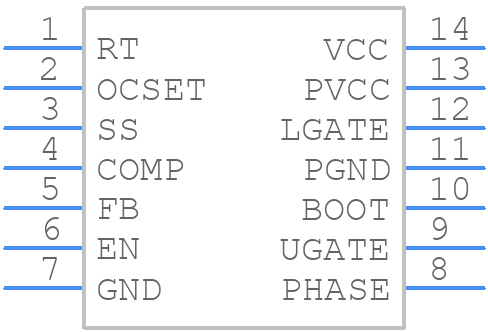

Use the download button to access the ISL6535CBZ-T schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
