Description:The ISL6535 is a high performance synchronous controller for demanding DC/DC converter applications. It provides overcurrent fault protection and is designed to safely start-up into prebiased output loads. The output voltage of the converter can be precisely regulated to as low as 0.597V, with a maximum tolerance of ±1% over the commercial temperature range, and ±1.5% over the industrial temperature range. The ISL6535 provides simple, single feedback loop, voltage mode control with fast transient response.
The recommended PCB layout for the ISL6535CBZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To select the right inductor for the ISL6535CBZ, consider the following factors: inductance value, current rating, and DC resistance. A higher inductance value can reduce ripple current, but may increase the size of the inductor. The current rating should be higher than the maximum output current of the converter. The DC resistance should be low to minimize power loss.
The maximum junction temperature that the ISL6535CBZ can withstand is 150°C. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and to prevent thermal shutdown.
Yes, the ISL6535CBZ can operate in a high-temperature environment, but it's essential to ensure that the junction temperature remains within the recommended range. You may need to use thermal management techniques such as heat sinks, thermal interfaces, or forced air cooling to keep the junction temperature within the recommended range.
To troubleshoot issues with the ISL6535CBZ, start by checking the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range and that the output voltage is within the specified tolerance. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check for any noise or oscillations on the output voltage. Consult the datasheet and application notes for troubleshooting guidelines and fault detection methods.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6535CBZ Overview

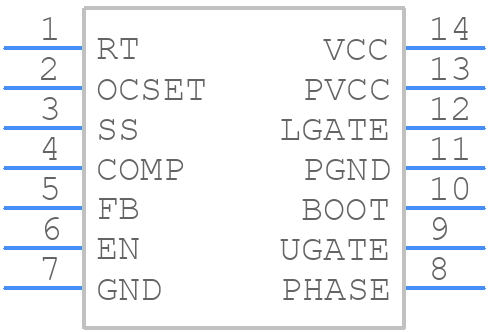

Use the download button to access the ISL6535CBZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
