Description:The ISL6535 is a high performance synchronous controller for demanding DC/DC converter applications. It provides overcurrent fault protection and is designed to safely start-up into prebiased output loads. The output voltage of the converter can be precisely regulated to as low as 0.597V, with a maximum tolerance of ±1% over the commercial temperature range, and ±1.5% over the industrial temperature range. The ISL6535 provides simple, single feedback loop, voltage mode control with fast transient response.
The recommended PCB layout for the ISL6535CRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of external components for the ISL6535CRZ depends on the specific application requirements, such as the input voltage, output voltage, and output current. Renesas provides a component selection guide in the datasheet, which can be used to determine the suitable component values. Additionally, online tools and simulation software can be used to simulate the design and optimize the component selection.
The ISL6535CRZ can operate in an ambient temperature range of -40°C to +85°C. However, the maximum junction temperature (TJ) should not exceed 125°C. It's recommended to ensure proper thermal design and heat sinking to maintain a safe operating temperature.
The ISL6535CRZ has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor values can be calculated based on the desired overcurrent threshold. Additionally, the ISL6535CRZ also has a hiccup mode that can be enabled to prevent damage to the device in case of an overcurrent event.
Yes, the ISL6535CRZ is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard for automotive applications and is also suitable for industrial and medical applications that require high reliability. However, it's recommended to consult with Renesas' technical support team to ensure that the device meets the specific requirements of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6535CRZ Overview

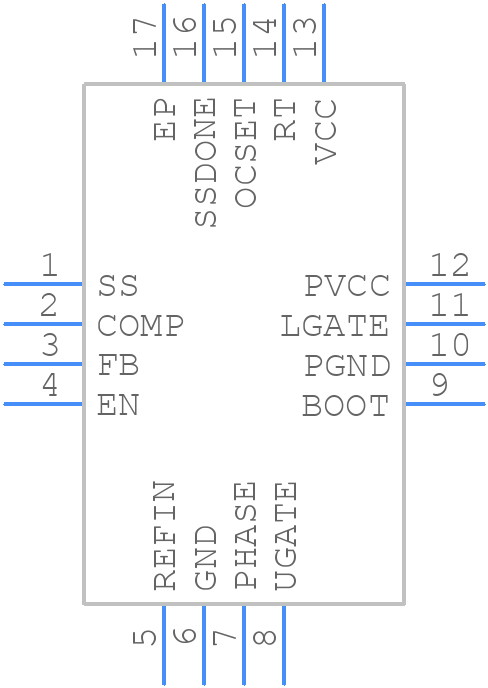

Use the download button to access the ISL6535CRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
