Description:The ISL6535 is a high performance synchronous controller for demanding DC/DC converter applications. It provides overcurrent fault protection and is designed to safely start-up into prebiased output loads. The output voltage of the converter can be precisely regulated to as low as 0.597V, with a maximum tolerance of ±1% over the commercial temperature range, and ±1.5% over the industrial temperature range. The ISL6535 provides simple, single feedback loop, voltage mode control with fast transient response.
The recommended PCB layout for the ISL6535IBZ-T involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The selection of external components for the ISL6535IBZ-T depends on the specific application requirements, such as the input voltage, output voltage, and output current. The datasheet provides guidelines for selecting the inductor and output capacitors, and online tools such as the Renesas PowerNavigator can also be used to aid in the selection process.
The ISL6535IBZ-T can operate in ambient temperatures up to 105°C, but the maximum junction temperature is 125°C. It's recommended to ensure that the device is properly cooled and that the thermal design is adequate to prevent overheating.
The ISL6535IBZ-T has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor and a capacitor. The datasheet provides more information on how to implement overcurrent protection, including the calculation of the OCSET resistor and capacitor values.
Yes, the ISL6535IBZ-T can be used in a synchronous buck converter configuration. The device has a built-in synchronous rectifier driver that can be used to drive an external N-channel MOSFET. The datasheet provides more information on how to implement a synchronous buck converter using the ISL6535IBZ-T.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6535IBZ-T Overview

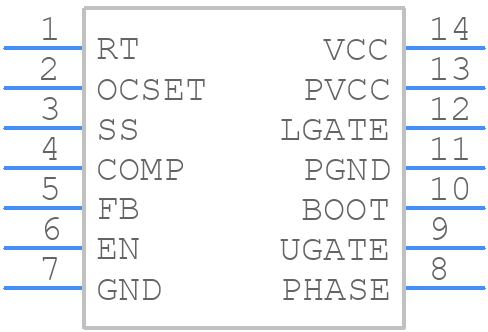

Use the download button to access the ISL6535IBZ-T schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
