Description:The ISL6535 is a high performance synchronous controller for demanding DC/DC converter applications. It provides overcurrent fault protection and is designed to safely start-up into prebiased output loads. The output voltage of the converter can be precisely regulated to as low as 0.597V, with a maximum tolerance of ±1% over the commercial temperature range, and ±1.5% over the industrial temperature range. The ISL6535 provides simple, single feedback loop, voltage mode control with fast transient response.
The recommended PCB layout for the ISL6535IBZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of external components for the ISL6535IBZ depends on the specific application requirements, such as the input voltage, output voltage, and output current. The datasheet provides guidelines for selecting the inductor and output capacitors, including equations for calculating the required values. Additionally, Renesas provides a power supply design tool that can help with component selection.
The ISL6535IBZ has a maximum ambient operating temperature of 85°C, but it can be derated for higher temperatures. The datasheet provides a thermal derating curve that shows the maximum allowed junction temperature and the corresponding ambient temperature.
The ISL6535IBZ has a built-in overcurrent protection feature that can be enabled by connecting a resistor from the OC pin to the GND pin. The value of the resistor determines the overcurrent threshold. The datasheet provides more information on how to implement overcurrent protection and calculate the required resistor value.
Yes, the ISL6535IBZ can be used in a synchronous buck converter configuration. In this configuration, the internal high-side switch is used in conjunction with an external low-side switch to improve efficiency. The datasheet provides more information on how to implement a synchronous buck converter with the ISL6535IBZ.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6535IBZ Overview

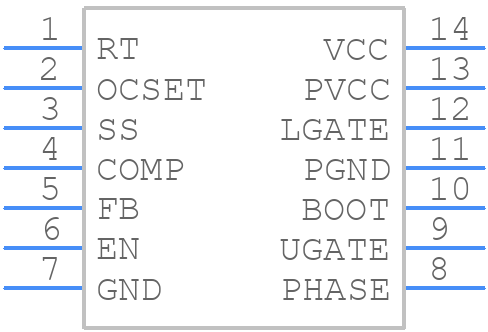

Use the download button to access the ISL6535IBZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
