Description:The ISL6535 is a high performance synchronous controller for demanding DC/DC converter applications. It provides overcurrent fault protection and is designed to safely start-up into prebiased output loads. The output voltage of the converter can be precisely regulated to as low as 0.597V, with a maximum tolerance of ±1% over the commercial temperature range, and ±1.5% over the industrial temperature range. The ISL6535 provides simple, single feedback loop, voltage mode control with fast transient response.
The recommended PCB layout for the ISL6535IRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's essential to separate the analog and power grounds to minimize noise coupling.
The selection of external components for the ISL6535IRZ depends on the specific application requirements, such as output voltage, current, and frequency. A good starting point is to use the component values suggested in the datasheet, and then adjust them based on the specific design requirements. It's also recommended to use a component selection tool or consult with an experienced engineer.
The maximum ambient temperature range for the ISL6535IRZ is -40°C to +85°C. As the ambient temperature increases, the device's performance may be affected, including reduced efficiency, increased power losses, and potential thermal shutdown. It's essential to ensure proper thermal management and heat sinking to maintain reliable operation.
The ISL6535IRZ has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The recommended settings for overcurrent protection depend on the specific application requirements, but a typical setting is to set the overcurrent threshold to 1.5-2 times the maximum expected output current.
The ISL6535IRZ and ISL85415 are both high-performance buck regulators, but they have different feature sets and application focuses. The ISL6535IRZ is optimized for high-current, high-frequency applications, while the ISL85415 is more suited for low-power, low-voltage applications. The ISL6535IRZ also has a wider input voltage range and higher output current capability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6535IRZ Overview

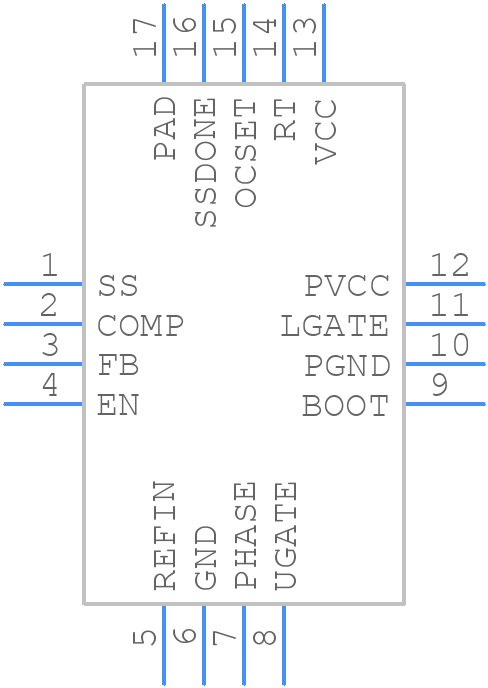

Use the download button to access the ISL6535IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
