Description:The ISL6537 provides a complete ACPI compliant power solution for up to 4 DIMM dual channel DDR/DDR2 Memory systems. Included are both a synchronous buck controller to supply VDDQ during S0/S1 and S3 states. During S0/S1 state, a fully integrated sink-source regulator generates an accurate (VDDQ/2) high current VTT voltage without the need for a negative supply. A buffered version of the VDDQ/2 reference is provided as VREF. Two LDO controllers are also integrated for the GMCH core voltage regulation and fo
The recommended PCB layout for optimal performance involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
The selection of input and output capacitors depends on the specific requirements of your application. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be able to handle the maximum input voltage and current, while the output capacitor should be able to handle the maximum output voltage and current. The datasheet provides guidelines for capacitor selection, but it's recommended to consult with a capacitor manufacturer for specific recommendations.
The ISL6537CRZ is rated for operation from -40°C to 85°C. However, the maximum ambient temperature range for reliable operation may be lower depending on the specific application and the thermal design of the system. It's recommended to consult with a thermal expert to determine the maximum ambient temperature range for your specific application.
To ensure EMC in your design, it's recommended to follow good PCB layout practices, such as keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use shielding and filtering components, such as ferrite beads and common-mode chokes, to reduce electromagnetic interference (EMI). The datasheet provides guidelines for EMC, but it's recommended to consult with an EMC expert for specific recommendations.
The recommended method for thermal management involves using a heat sink or thermal pad to dissipate heat away from the IC. The heat sink or thermal pad should be designed to handle the maximum power dissipation of the IC, and should be attached to the IC using a thermal interface material (TIM). The datasheet provides guidelines for thermal management, but it's recommended to consult with a thermal expert for specific recommendations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6537CRZ Overview

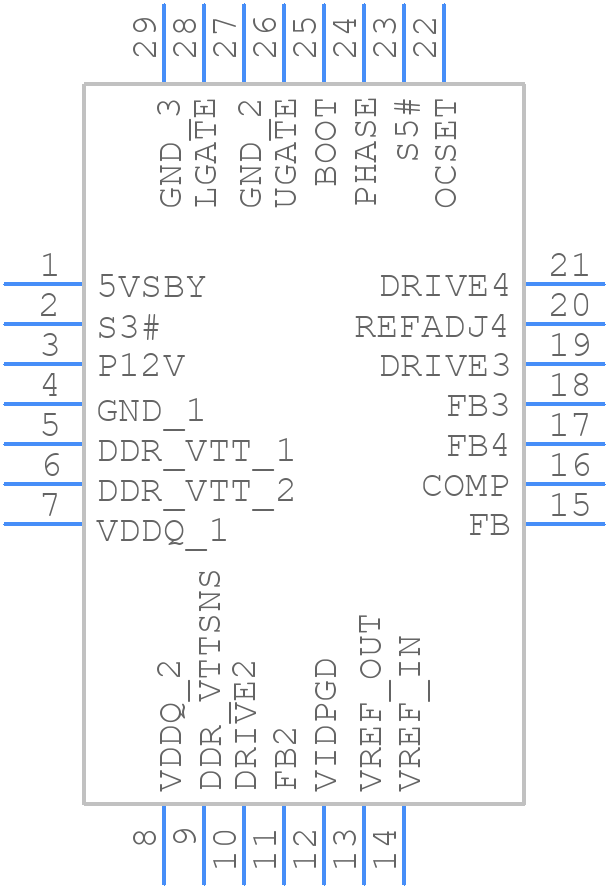

Use the download button to access the ISL6537CRZ schematic symbol, PCB footprint, and 3D model.
