Description:The ISL6548A provides a complete ACPI compliant power solution for up to 4 DIMM dual channel DDR/DDR2 Memory systems. Included are both a synchronous buck controller to supply VDDQ during S0/S1 and S3 states. During S0/S1 state, a fully integrated sink-source regulator generates an accurate (VDDQ/2) high current VTT voltage without the need for a negative supply. A second PWM controller, which requires external MOSFET drivers, is available for regulation of the GMCH Core voltage. A sink/source LDO controlle
A good PCB layout for the ISL6548ACRZA-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
To ensure the ISL6548ACRZA-T operates within its SOA, you should monitor the device's junction temperature, input voltage, output current, and power dissipation. Make sure to follow the recommended operating conditions and thermal management guidelines outlined in the datasheet, and consider using thermal simulation tools to optimize your design.
Not using the recommended input and output capacitors with the ISL6548ACRZA-T can lead to reduced performance, increased noise, and potential instability. The capacitors help to filter out noise, reduce ripple, and improve the overall power supply rejection ratio (PSRR) of the device. Using non-recommended capacitors can compromise these benefits and may even cause the device to malfunction.
To troubleshoot issues with the ISL6548ACRZA-T, start by verifying that the device is properly soldered and that the PCB layout meets the recommended guidelines. Check the input voltage, output current, and power dissipation to ensure they are within the recommended operating conditions. Use an oscilloscope to monitor the output voltage and current waveforms, and consider using thermal imaging tools to identify hotspots. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
The ISL6548ACRZA-T is a commercial-grade device, but it can be used in high-reliability or high-temperature applications with proper design and qualification. You should consult the datasheet and application notes for guidance on using the device in these types of applications, and consider performing additional testing and qualification to ensure the device meets your specific requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6548ACRZA-T Overview

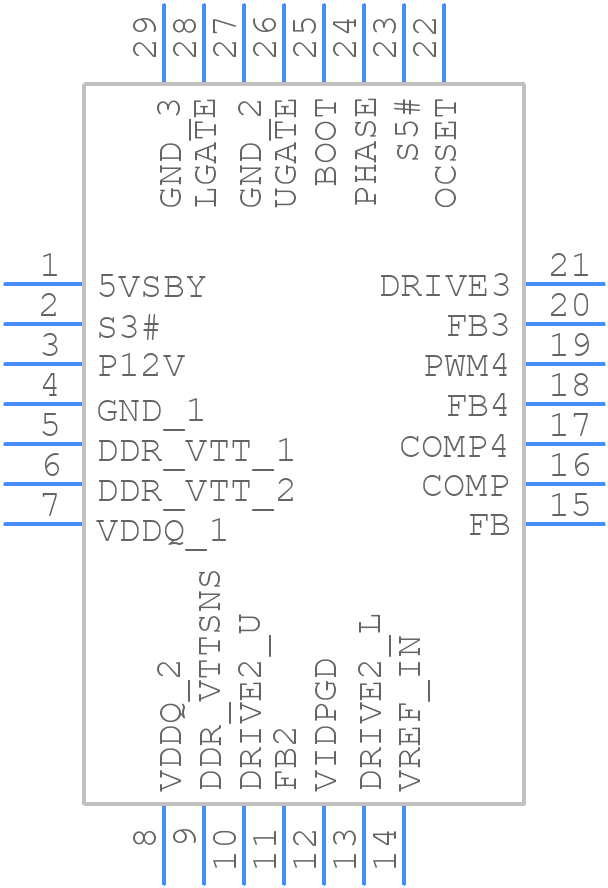

Use the download button to access the ISL6548ACRZA-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
