Description:The ISL6611A utilizes Intersil’s proprietary Phase Doubler scheme to modulate two-phase power trains with single PWM input. It doubles the number of phases that Intersil’s ISL63xx multiphase controllers can support. At the same time, the PWM line can be pulled high to disable the corresponding phase or higher phase(s) when the enable pin (EN_PH) is pulled low. This simplifies the phase shedding implementation. For layout simplicity and improving system performance, the device integrates two 5V drivers (ISL6
IT USES PROPRIETARY PHASE DOUBLER SCHEME FOR MODULATION
Analog IC - Other Type:
DUAL SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
S-PQCC-N16
JESD-609 Code:
e3
Length:
4 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
PHASE-SHIFT
Switching Frequency-Max:
1000 kHz
Temperature Grade:
COMMERCIAL
Terminal Finish:
MATTE TIN
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
4 mm
ISL6611ACRZ-T Frequently Asked Questions (FAQs)
Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, thermal management, and routing to minimize noise and ensure reliable operation.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. Renesas recommends using capacitors with low ESR and high ripple current capability, and provides guidance in the datasheet and application notes.
The ISL6611ACRZ-T has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Engineers should ensure proper thermal management to prevent overheating and ensure reliable operation.
Renesas provides troubleshooting guidelines in the application notes and datasheet, including checking for proper component selection, PCB layout, and thermal management. Engineers can also use simulation tools and oscilloscopes to debug the circuit and identify the root cause of the issue.
Yes, the ISL6611ACRZ-T is compatible with lead-free soldering processes, and Renesas provides guidance on the recommended soldering conditions and profiles in the datasheet and application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6611ACRZ-T Overview

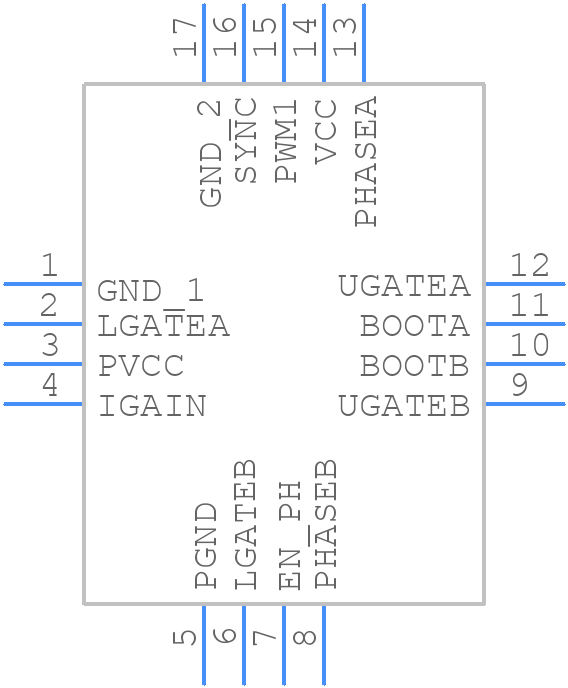

Use the download button to access the ISL6611ACRZ-T schematic symbol, PCB footprint, and 3D model.
