Description:The ISL6612A and ISL6613A are high frequency MOSFET drivers specifically designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. These drivers combined with HIP63xx or ISL65xx Multi-Phase Buck PWM controllers and N-Channel MOSFETs form complete core-voltage regulator solutions for advanced microprocessors. The ISL6612A drives the upper gate to 12V, while the lower gate can be independently driven over a range from 5V to 12V. The ISL6613A drives both uppe
A good PCB layout for the ISL6612ACBZ-T involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a solid ground plane to minimize noise and EMI.
To ensure proper thermal management, it's recommended to attach a heat sink to the IC, especially in high-power applications. The heat sink should be designed to keep the junction temperature below 125°C. Additionally, ensure good airflow around the IC and avoid blocking the airflow with other components or obstacles.
The recommended input capacitor is a low-ESR ceramic capacitor with a value of 10uF to 22uF, and the recommended output capacitor is a low-ESR ceramic capacitor with a value of 22uF to 47uF. The capacitors should be placed close to the IC and have a voltage rating that exceeds the maximum input and output voltages.
To troubleshoot issues with the ISL6612ACBZ-T, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the input and output capacitors are properly selected and placed. Then, check the voltage and current waveforms using an oscilloscope to identify any signs of oscillation or instability. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
Yes, the ISL6612ACBZ-T can be used in a synchronous buck converter configuration. In this configuration, the IC can be used as a high-side switch and a low-side synchronous rectifier. However, it's essential to ensure that the IC is properly configured and that the PCB layout is optimized for this configuration.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6612ACBZ-T Overview

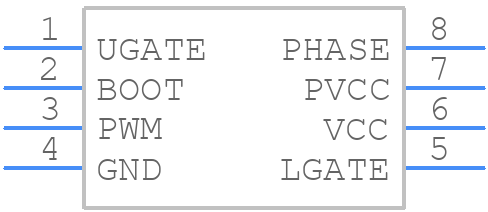

Use the download button to access the ISL6612ACBZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL66,
or try a keyword search, such as MOSFET Drivers
