ISL6612ACBZ - Renesas Electronics

Description: The ISL6612A and ISL6613A are high frequency MOSFET drivers specifically designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. These drivers combined with HIP63xx or ISL65xx Multi-Phase Buck PWM controllers and N-Channel MOSFETs form complete core-voltage regulator solutions for advanced microprocessors. The ISL6612A drives the upper gate to 12V, while the lower gate can be independently driven over a range from 5V to 12V. The ISL6613A drives both uppe

Download ISL6612ACBZ Model

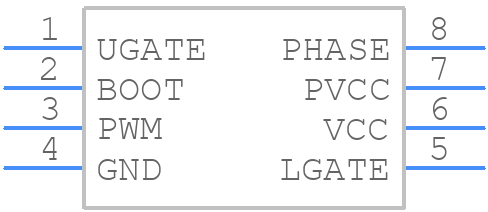

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL6612ACBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
ISL6612ACBZ - Renesas Electronics  - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

ISL6612ACBZ Details

  • Manufacturer Part Number:

    ISL6612ACBZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    10.8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    13.2 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.01 µs

  • Turn-on Time:

    0.01 µs

  • Width:

    3.9 mm

ISL6612ACBZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ISL6612ACBZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve thermal performance.
  • The selection of input and output capacitors for the ISL6612ACBZ depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input voltage.
  • The maximum operating temperature range for the ISL6612ACBZ is -40°C to +125°C. However, the device's performance and reliability may degrade at temperatures above 85°C. It's recommended to use a heat sink or a thermal pad to keep the device temperature below 85°C for optimal performance and reliability.
  • The ISL6612ACBZ can be configured for a specific output voltage by using a resistive divider network between the VOUT pin and the GND pin. The output voltage is determined by the ratio of the resistors in the divider network. For example, to set the output voltage to 1.2V, you can use a 1kΩ resistor between the VOUT pin and the GND pin, and a 2.2kΩ resistor between the VOUT pin and the VIN pin.
  • The maximum current rating for the ISL6612ACBZ is 12A. However, the device's current rating may be limited by the thermal performance of the PCB and the heat sink. It's recommended to use a heat sink or a thermal pad to keep the device temperature below 85°C for optimal performance and reliability.
